Unit · AXIAL-PISTON PUMP
PA2P-SL500HWGR5GV2PR910928537
Axial piston pump Bosch Rexroth series A2P, type code PA2P-SL500HWGR5GV2P, material number R910928537.
- Number
- R910928537
- Type code
- PA2P-SL500HWGR5GV2P
- Group
- AXIAL-PISTON PUMP
- Edition
- 02/2019

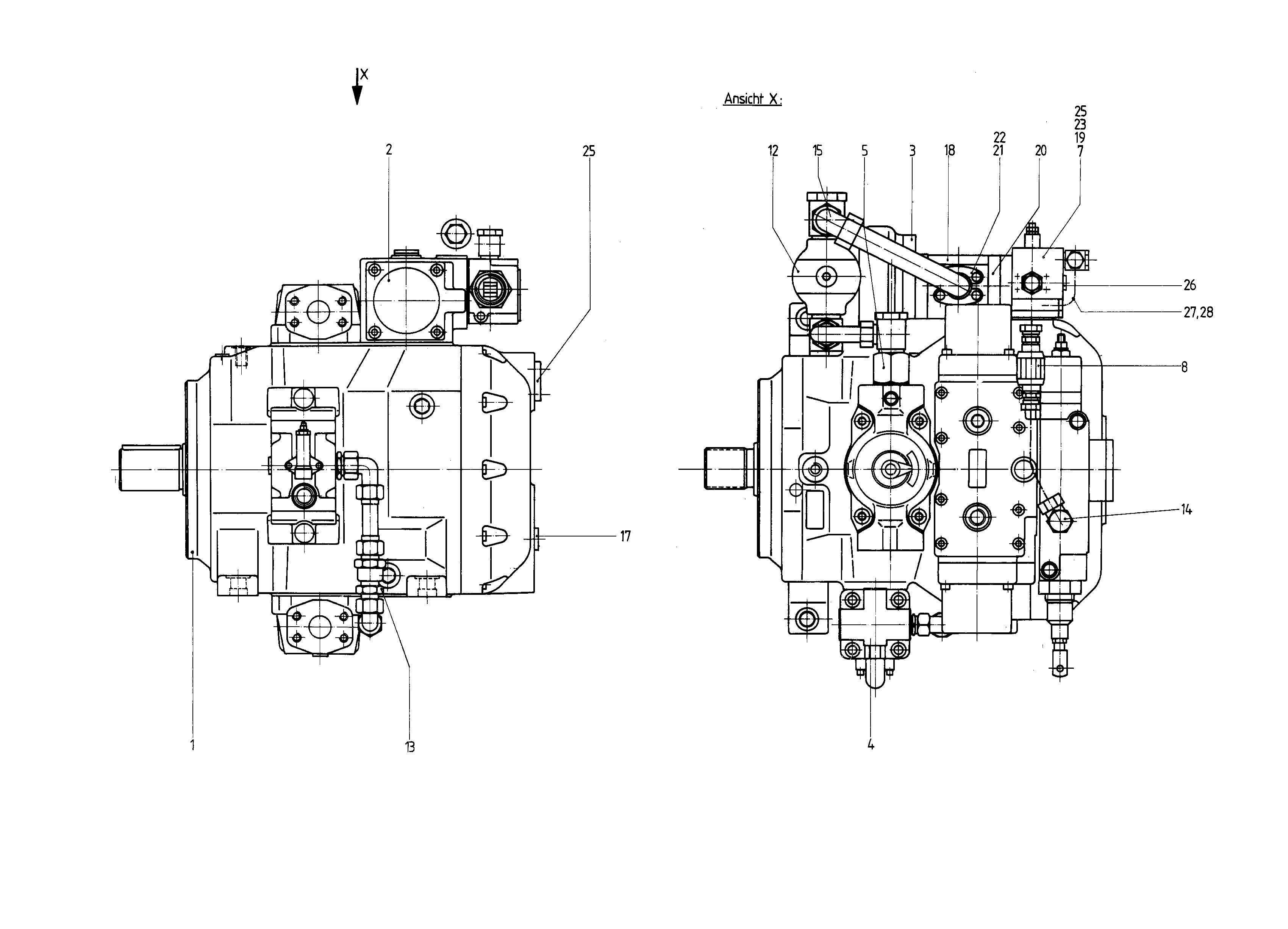

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910928538 | BASE UNIT Assembly parts list →L | 1 | ||
| — | CONTROL Assembly parts list →L | 1 | ||
| 3 | R910701394 | CONNECTING ELEMENT Assembly parts list →L | 1 | |
| R910618756 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| 5 | R910670685 | NON-RETURN VALVE Assembly parts list →L | 2 | |
| 7 | R910926162 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | |
| 8 | R910618934 | THROTTLE VALVE | 1 | |
| 12 | — | FILTER Assembly parts list →L | 1 | |
| 13 | R910753955 | NON-RETURN VALVE | 1 | |
| — | PIPING PLAN Assembly parts list →L | 1 | ||
| 15 | R910759406 | PIPING PLAN Assembly parts list →L | 1 | |
| 16 | — | PIPING PLAN Assembly parts list →L | 1 | |
| R909153861 | SCREW PLUGD | 1 | ||
| R910694681 | GEAR PUMP | 1 | ||
| — | GEAR PUMP | 1 | ||
| 20 | R910730114 | FASTENER Assembly parts list →L | 1 | |
| 21 | R910907687 | FLANGE | 1 | |
| R910943894 | FLANGE Assembly parts list →L | 1 | ||
| 23 | — | THREADED FASTENER Assembly parts list →L | 1 | |
| 24 | R910943355 | THREADED FASTENER | 1 | |
| — | BLANK FLANGE Assembly parts list →L | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R910774898 | REDUCTION THREADED JOINT | 1 | ||
| R910744662 | SEAL RINGD | 1 |
