Unit · ROTARY GROUP
TW A4VSG 500 M/10X-VPHN00R910928590
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG500M/10X-VPHN00, material number R910928590. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 8-hole (H). Through drives (for mounting options and dimensions: without through drive (N00).
- Number
- R910928590
- Type code
- TW A4VSG 500 M/10X-VPHN00
- Group
- A4VSG 500
- Edition
- 06/2020

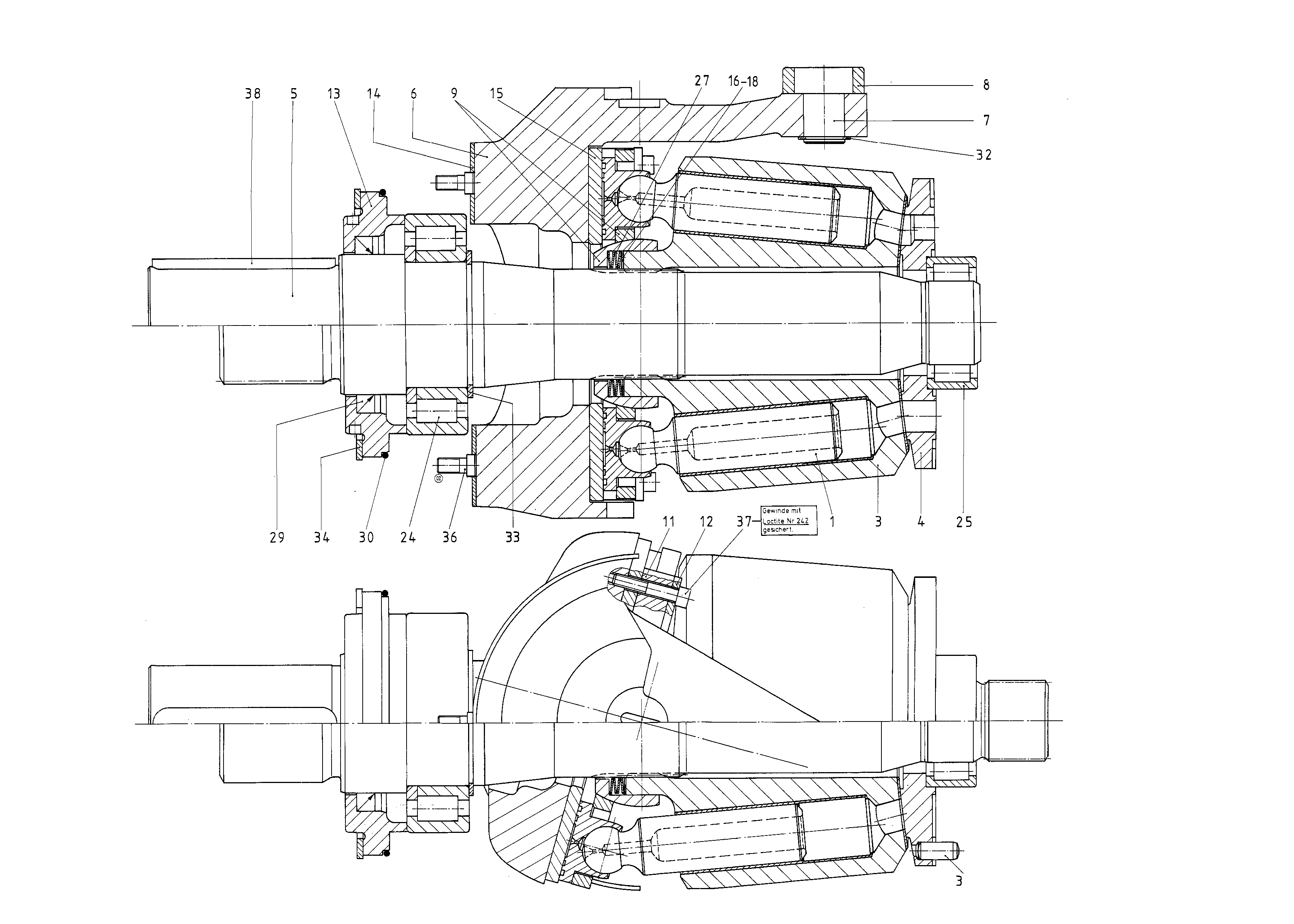

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910963090 | PISTON PAD | 9 | |
| 3 | R910926107 | CYLINDER | 1 | |
| 4 | R910920283 | DISTRIBUTOR PLATE | 1 | |
| R902408420 | DRIVE SHAFT | 1 | ||
| 6 | R910910908 | SWASH PLATE | 1 | |
| 7 | R910910927 | DRIVER PIVOT | 1 | |
| 8 | R910910926 | SLIDER | 1 | |
| 9 | R910971077 | RETAINING PLATE | 1 | |
| 10 | R910910916 | RETAINING BALL | 1 | |
| 11 | R910965066 | SPACER SEGMENT | 4 | |
| 12 | R902570176 | SEGMENT | 4 | |
| R910910924 | SEALING FLANGE | 1 | ||
| R910918953 | BEARING SHELL | 2 | ||
| 15 | R902439281 | SLIDING DISC | 1 | |
| 16 | R910960170 | SHIM RING | 1 | |
| 17 | R910960754 | SHIM RING | 1 | |
| 24 | R910978421 | CYL. ROLLER BEARING | 1 | |
| R910978422 | CYL. ROLLER BEARING | 1 | ||
| 27 | R910911350 | CUP-SPRING STACK | 1 | |
| R910930623 | SHAFT SEALING RINGD | 1 | ||
| 30 | R910113689 | O-RINGD | 1 | |
| R910187968 | RETAINING RING | 1 | ||
| 33 | R910188034 | RETAINING RING | 1 | |
| R910901219 | RETAINING RING | 1 | ||
| 35 | R910910938 | STRAIGHT PIN | 1 | |
| 36 | R910915821 | SETTING SCREW | 2 | |
| 37 | R902650870 | SOCKET HEAD CAP SCREW | 8 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 8-hole | H |
| Through drives (for mounting options and dimensions | Without through drive | N00 |
