Unit · BASE UNIT

G AA10V O 45 OV /50R-PSC64N00R910928599

Base unit Bosch Rexroth series A10VO, type code GAA10VO45OV/50R-PSC64N00, material number R910928599. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00).

Number: R910928599
Type code: G AA10V O 45 OV /50R-PSC64N00
Group: A10VO 45
Edition: 06/2020

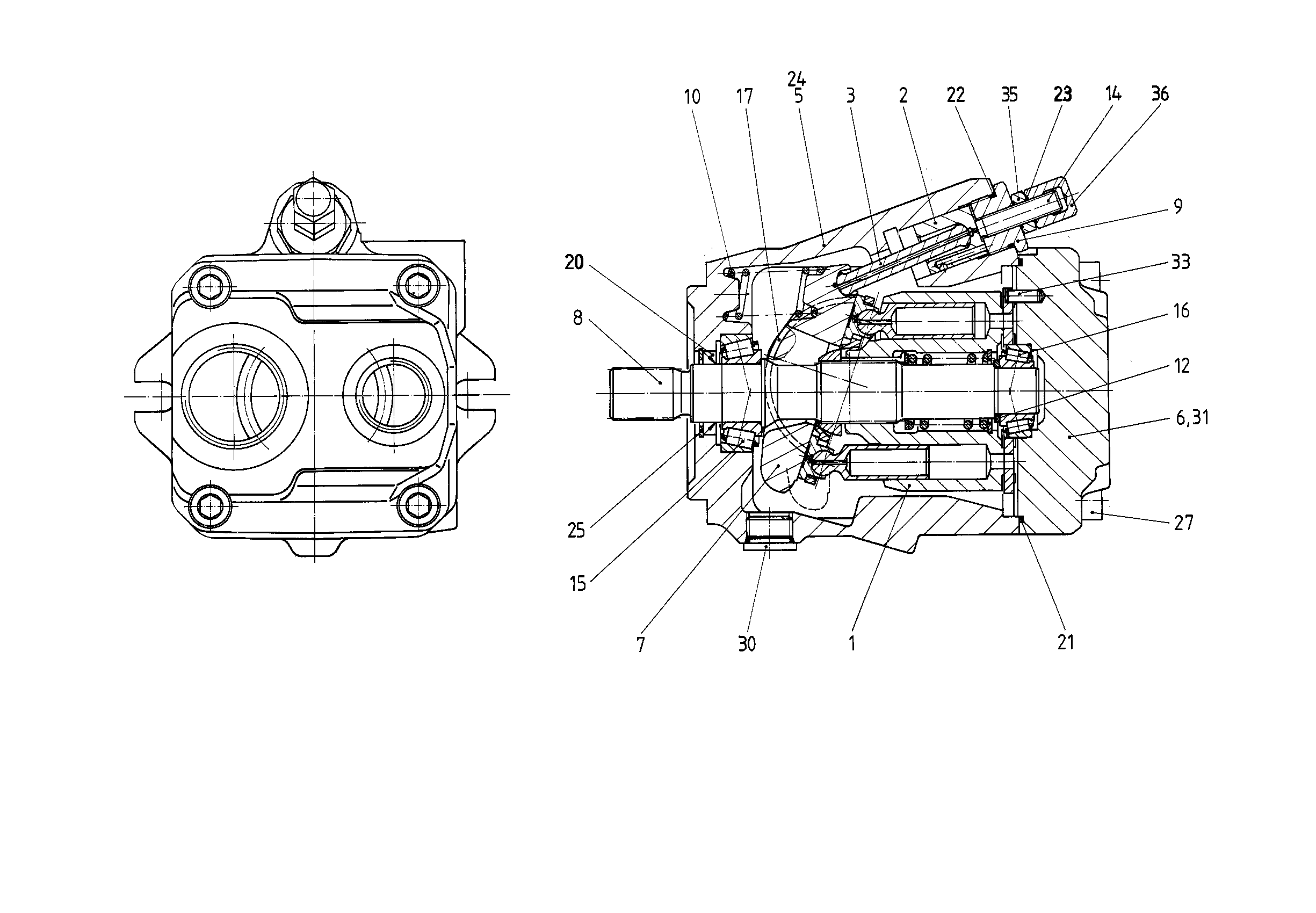

Pos.	Number	Name	Qty
	R902435271	ROTARY GROUP Assembly parts list →L	1
2	R910928600	ADJUSTING PISTON	1
3	R902439068	PISTON ROD	1
5	R910933806	PUMP HOUSING	1
	R910928602	CONNECTION PLATE	1
7	R902437704	SWASH PLATE	1
8	R910992268	DRIVE SHAFT	1
9	R902516339	SCREW PLUG	1
	R910928606	COMPRESSION SPRING	1
	R910938955	ADJUSTMENT SHIM	1
14	R902532354	STOP SCREW	1
	R910704946	TAPERED-ROLLER BEARING	1
	R910704954	TAPERED-ROLLER BEARING	1
	R910933793	BEARING SHELL	2
	R910793671	SHAFT SEALING RINGD	1
	R913052051	O-RINGD	1
	R910514691	O-RINGD	2
24	R910942134	R-RINGD	1
	R902403814	RETAINING RING	1
	R910110248	SOCKET HEAD CAP SCREW	4
	R909153339	SCREW PLUGD	1
	R909831318	DOUBLE BREAK-OFF PLUG	1
	R902533908	STRAIGHT PIN	1
	R910998240	NUT	1
	R910904041	CAP NUT	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Direction of rotation	Viewed on drive shaft clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	Threaded port, UNC rear not for through drive	64
Through drive	Without through drive	N00

Parameters from the type code
