Unit · AXIAL-PISTON PUMP
A AA10VSO 28 DFE /31R-VKC62N00R910928971
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO28DFE/31R-VKC62N00, material number R910928971. Nominal size: NG 28. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R910928971
- Type code
- A AA10VSO 28 DFE /31R-VKC62N00
- Group
- A10VSO 28
- Edition
- 06/2020

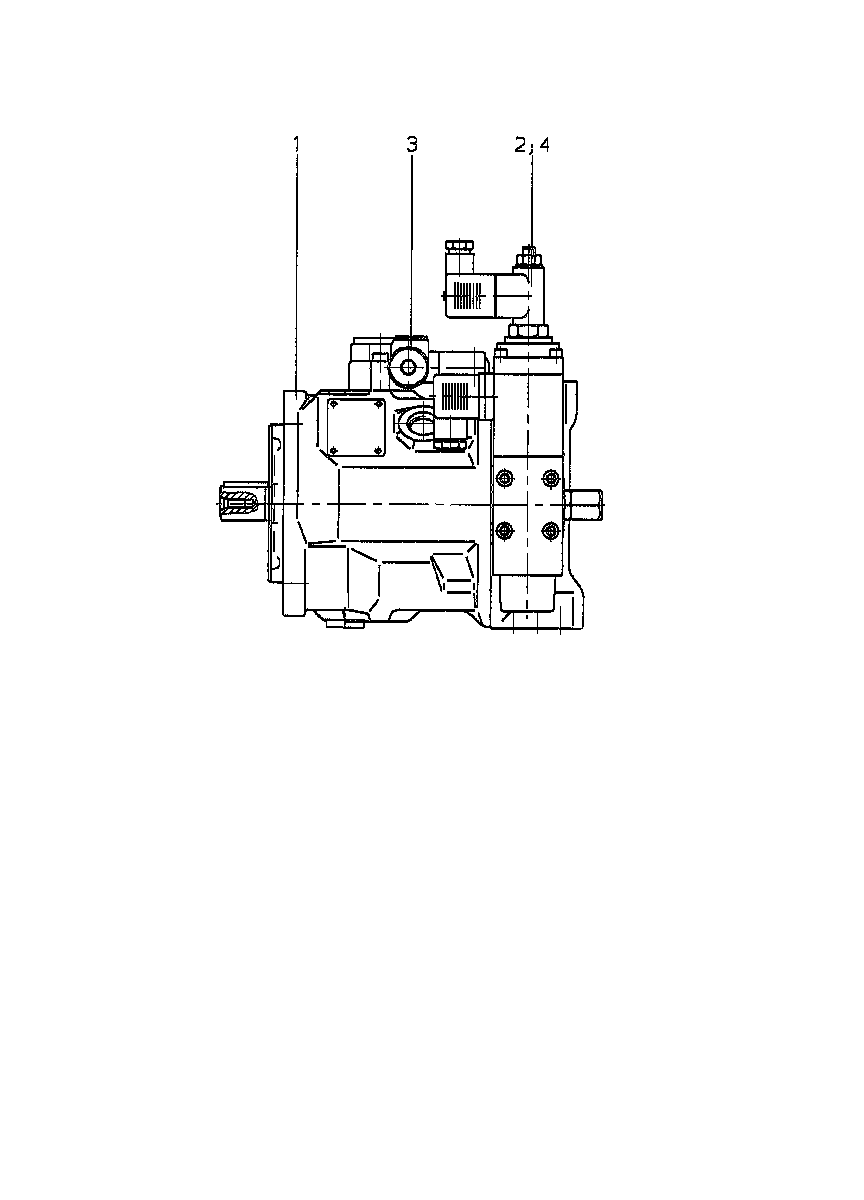

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910928792 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R902425762 | ELECTRONIC CONTROLS Assembly parts list →L | 1 | |
| 3 | R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | |
| 4 | R910110159 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
