Unit · BASE UNIT
G AA10VSO100 OV /31R-EKC62N00R910929051
Base unit Bosch Rexroth series A10VSO, type code GAA10VSO100OV/31R-EKC62N00, material number R910929051. Nominal size: NG 100. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R910929051
- Type code
- G AA10VSO100 OV /31R-EKC62N00
- Group
- A10VSO 100
- Edition
- 06/2020

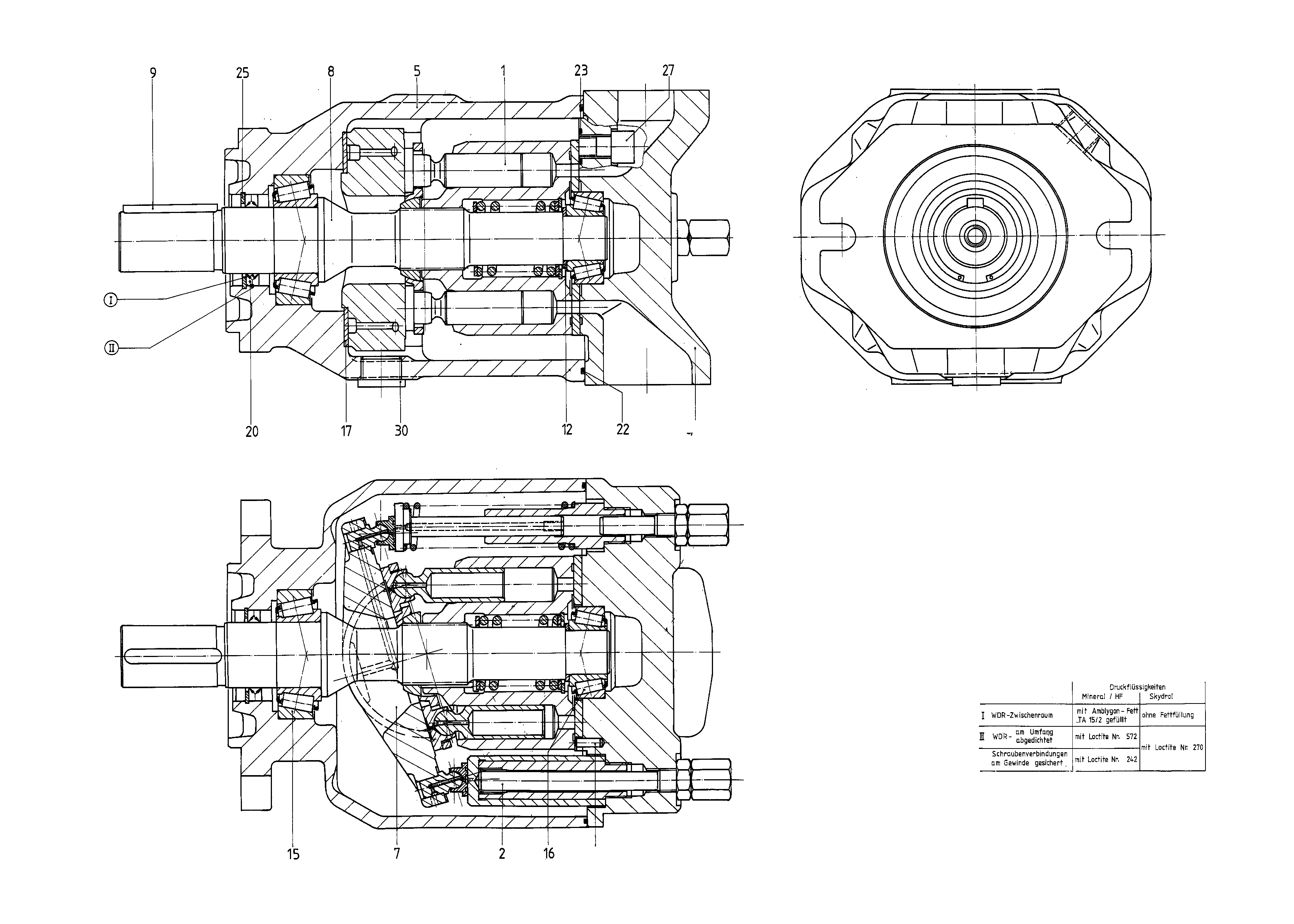

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538162 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910906803 | PUMP HOUSING | 1 | ||
| 6 | R910906800 | CONNECTION PLATE | 1 | |
| R910961050 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902410595 | DRIVE SHAFT | 1 | ||
| R910935395 | PARALLEL KEY | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910937951 | SHAFT SEALING RINGD | 1 | ||
| R910929053 | O-RINGD | 1 | ||
| R910929054 | O-RINGD | 4 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910923441 | SCREW PLUG | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
