Unit · AXIAL-PISTON PUMP
AA10VO100FHD/31L-VSC62K01-SO264R910929197
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100FHD/31L-VSC62K01-SO264, material number R910929197. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 264.
- Number
- R910929197
- Type code
- AA10VO100FHD/31L-VSC62K01-SO264
- Group
- A10VO 100
- Edition
- 06/2020

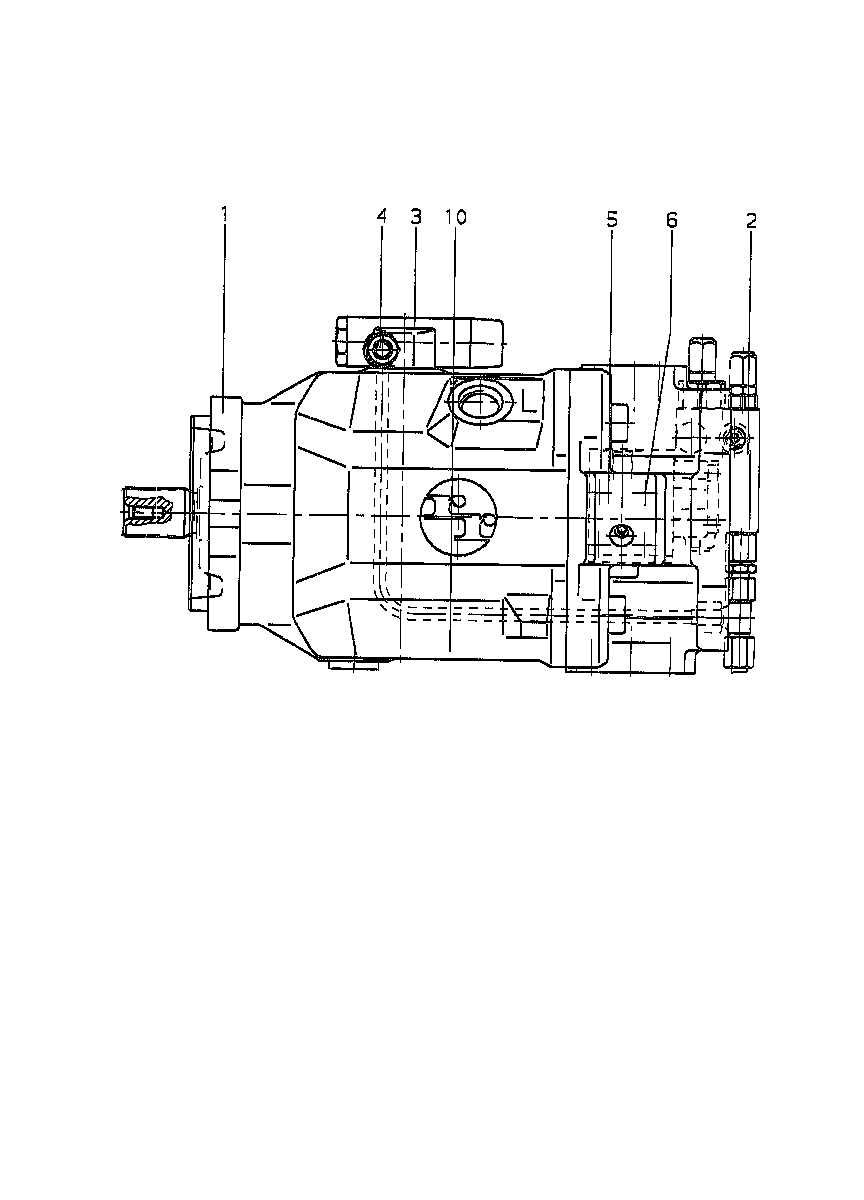

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910930526 | BASE UNIT Assembly parts list →L | 1 | |
| R902533818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 3 | R902533801 | CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R910902409 | ADAPTER Assembly parts list →L | 1 | |
| 5 | R910930557 | INTERMEDIATE PLATE Assembly parts list →L | 1 | |
| 6 | R910126446 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R910965637 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
