Unit · ROTARY GROUP
TW A6V M 250 /61W-P -SO 42R910929532

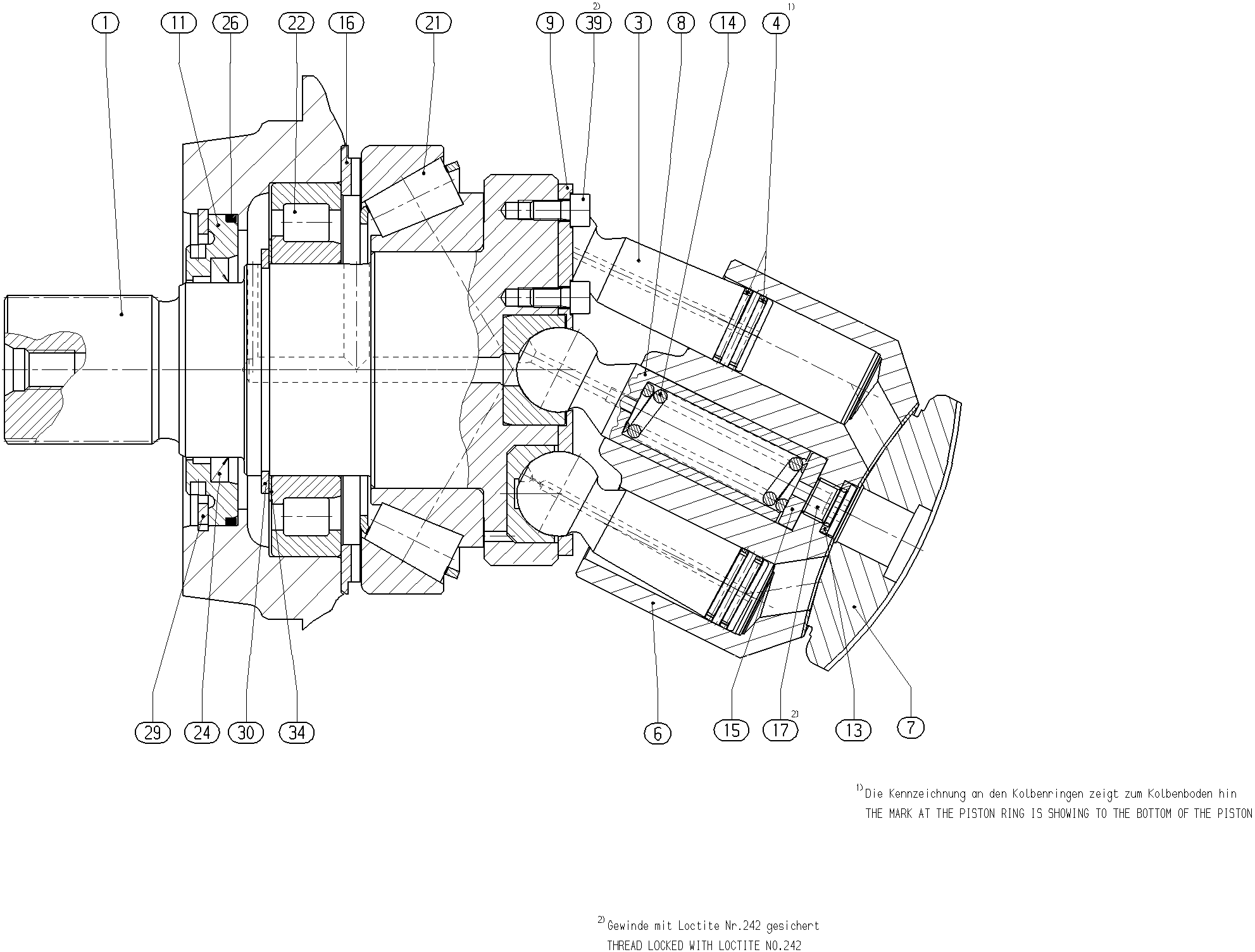

Rotary group Bosch Rexroth series A6VM, type code TWA6VM250/61W-P-SO42, material number R910929532. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W).
- Number
- R910929532
- Type code
- TW A6V M 250 /61W-P -SO 42
- Group
- A6VM 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910966990 | DRIVE FLANGE | 1 | ||
| R902441090 | PISTON | 7 | ||
| R902491349 | CYLINDER | 1 | ||
| R910922503 | CONTROL LENS | 1 | ||
| R902519719 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| R910929535 | SEALING FLANGE | 1 | ||
| R910969915 | SHIM RING | 1 | ||
| R910900002 | COMPRESSION SPRING | 1 | ||
| R910900003 | WASHER | 1 | ||
| R910999015 | ADJUSTMENT SHIM | 1 | ||
| R910969893 | SPACER SCREW | 1 | ||
| R910904776 | TAPERED-ROLLER BEARING | 1 | ||
| R910693944 | CYL. ROLLER BEARING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910112208 | O-RINGD | 1 | ||
| R910797448 | RETAINING RING | 1 | ||
| R910188034 | RETAINING RING | 1 | ||
| R910203297 | SHIM RING | 1 | ||
| R910584614 | SOCKET HEAD CAP SCREW | 14 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Direction of rotation | Viewed on drive shaft variable | W |
