Unit · BASE UNIT
G A10VSO 16 OV /30R-PSC62N00MESSEMODELR910929742
Base unit Bosch Rexroth series A10VSO, type code GA10VSO16OV/30R-PSC62N00MESSEMODEL, material number R910929742. Nominal size: NG 16. Axial piston unit: swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R910929742
- Type code
- G A10VSO 16 OV /30R-PSC62N00MESSEMODEL
- Group
- A10VSO 16
- Edition
- 06/2020

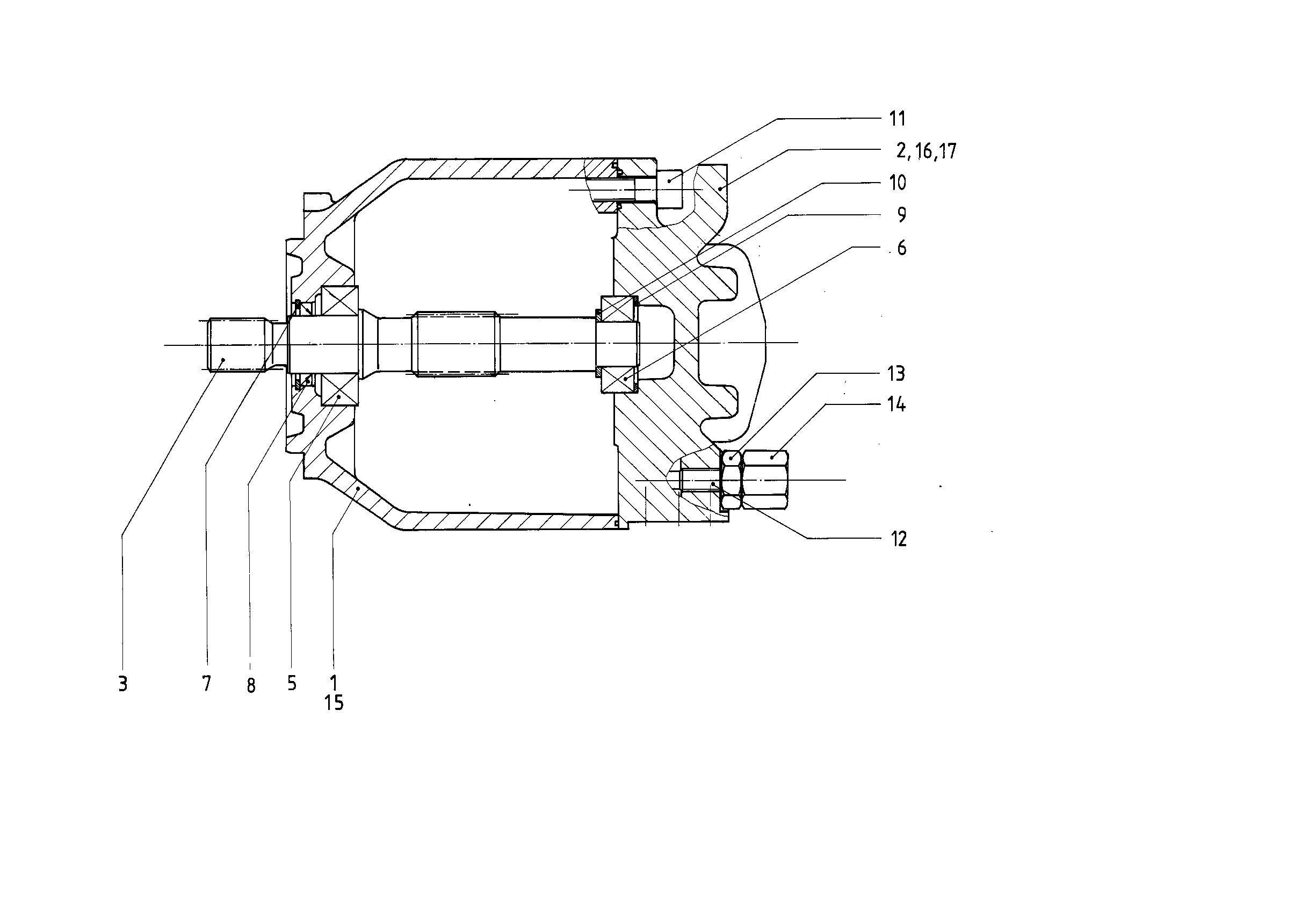

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910925613 | PUMP HOUSING | 1 | ||
| R910940752 | CONNECTION PLATE | 1 | ||
| 3 | R910929745 | DRIVE SHAFT | 1 | |
| 5 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| 6 | R909086994 | TAPERED-ROLLER BEARING | 1 | |
| 7 | R902403815 | RETAINING RING | 1 | |
| 8 | R910900853 | SHAFT SEALING RINGD | 1 | |
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R910904676 | SETSCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| 15 | R909153371 | SCREW PLUGD | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 16 | 16 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
