Unit · BASE UNIT
G AA10V O 45 OV /50R-PSC64N00 MESSEMODER910930027
Base unit Bosch Rexroth series A10VO, type code GAA10VO45OV/50R-PSC64N00MESSEMODE, material number R910930027. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00).
- Number
- R910930027
- Type code
- G AA10V O 45 OV /50R-PSC64N00 MESSEMODE
- Group
- A10VO 45
- Edition
- 06/2020

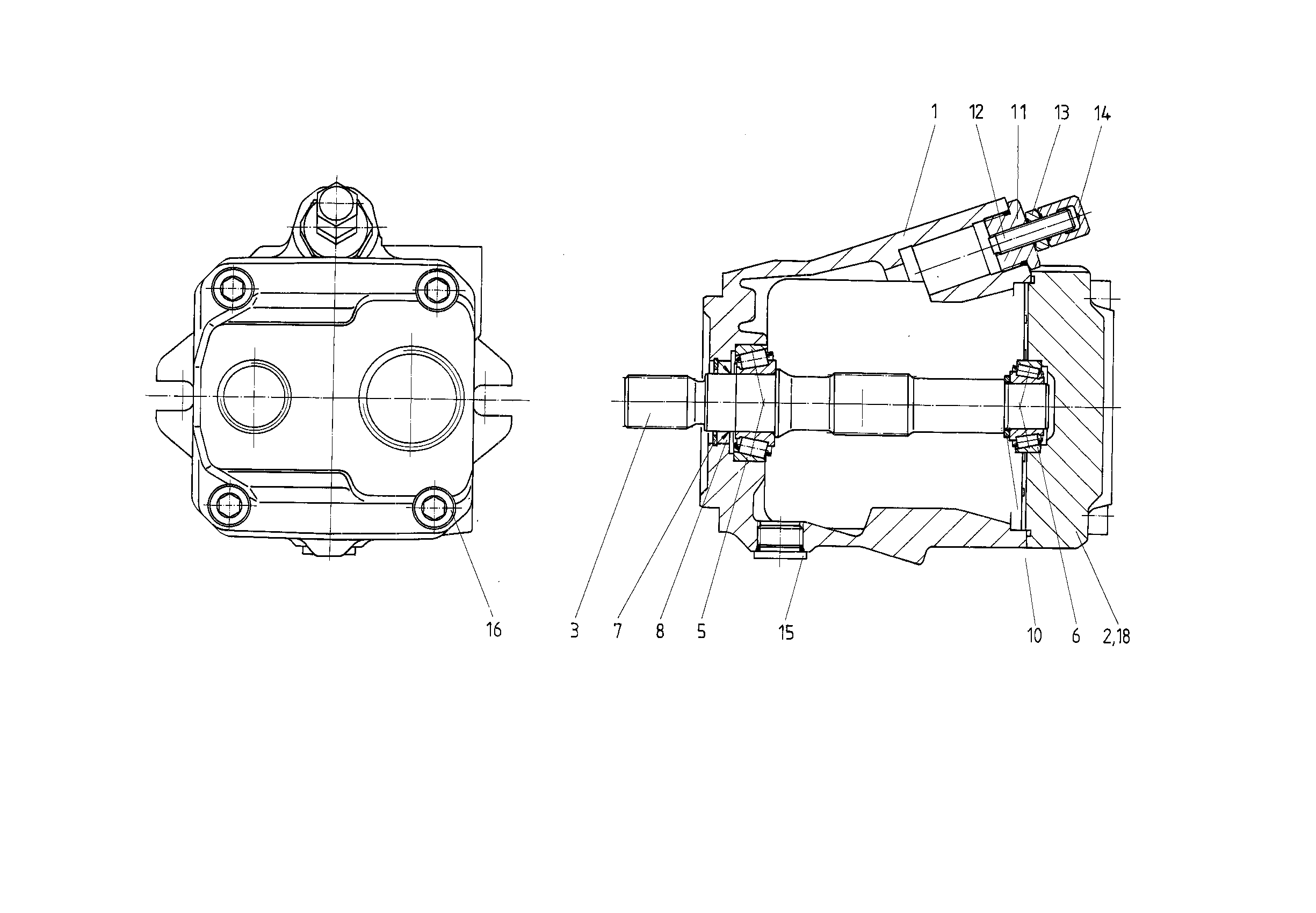

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910933806 | PUMP HOUSING | 1 | ||
| R910928602 | CONNECTION PLATE | 1 | ||
| R910763934 | DRIVE SHAFT | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R902516339 | SCREW PLUG | 1 | ||
| R902532354 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| R909153339 | SCREW PLUGD | 2 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | Threaded port, UNC rear not for through drive | 64 |
| Through drive | Without through drive | N00 |
