Unit · BASE UNIT
GAA10VM45OV/50W1-VSC60N000-SO870R910930467
Base unit Bosch Rexroth series A10VM, type code GAA10VM45OV/50W1-VSC60N000-SO870, material number R910930467. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side (60N00). Valves: without valve (0). Special version no. 870.
- Number
- R910930467
- Type code
- GAA10VM45OV/50W1-VSC60N000-SO870
- Group
- A10VM 45
- Edition
- 06/2020

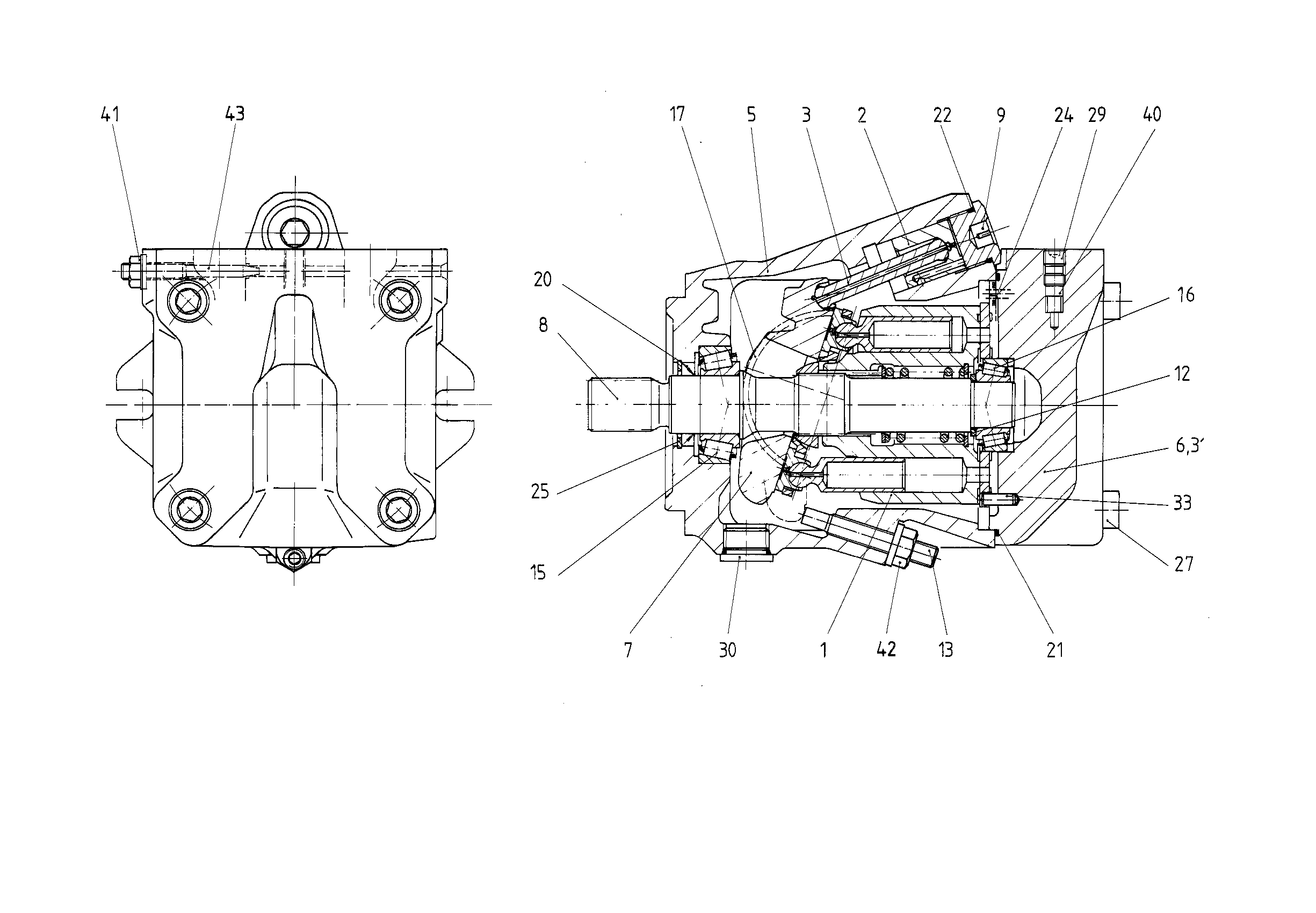

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910933802 | MOTOR HOUSING | 1 | ||
| R910993119 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| 8 | R910992268 | DRIVE SHAFT | 1 | |
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| 13 | R910933408 | STOP SCREW | 1 | |
| 15 | R910704946 | TAPERED-ROLLER BEARING | 1 | |
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| 24 | R910199044 | O-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910110256 | SOCKET HEAD CAP SCREW | 4 | |
| 29 | R913011608 | SCREW PLUG | 1 | |
| R910967343 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| 41 | R910783307 | DUMMYD | 1 | |
| R910748927 | DUMMYD | 1 | ||
| R910931953 | THROTTLE SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side | 60N00 |
| Valves | Without valve | 0 |
