Unit · BASE UNIT
G A10V O 45 OV /31L-PSC62K68 -SO273R910930597
Base unit Bosch Rexroth series A10VO, type code GA10VO45OV/31L-PSC62K68-SO273, material number R910930597. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 273.
- Number
- R910930597
- Type code
- G A10V O 45 OV /31L-PSC62K68 -SO273
- Group
- A10VO 45
- Edition
- 06/2020

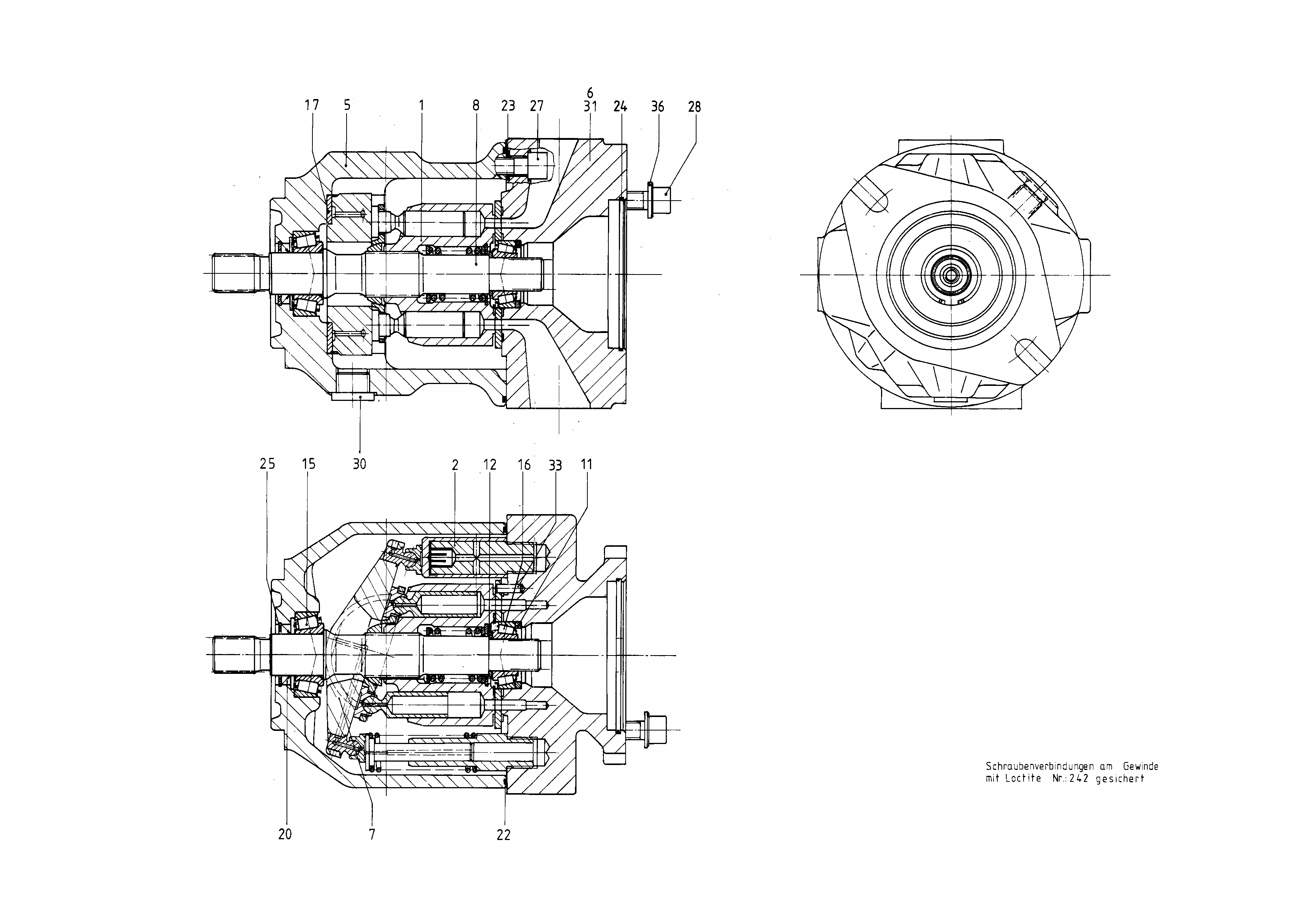

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435270 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910910852 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 5 | R902546050 | PUMP HOUSING | 1 | |
| 6 | R902424568 | CONNECTION PLATE | 1 | |
| 7 | R910961026 | SWASH PLATE | 1 | |
| 8 | R902417395 | DRIVE SHAFT | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| 23 | R913052114 | R-RINGD | 4 | |
| R910384259 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910220264 | SOCKET HEAD CAP SCREW | 4 | |
| R909153339 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
