Unit · CONTROL
V A7V O 250 DR /60R -SO 6R910930996

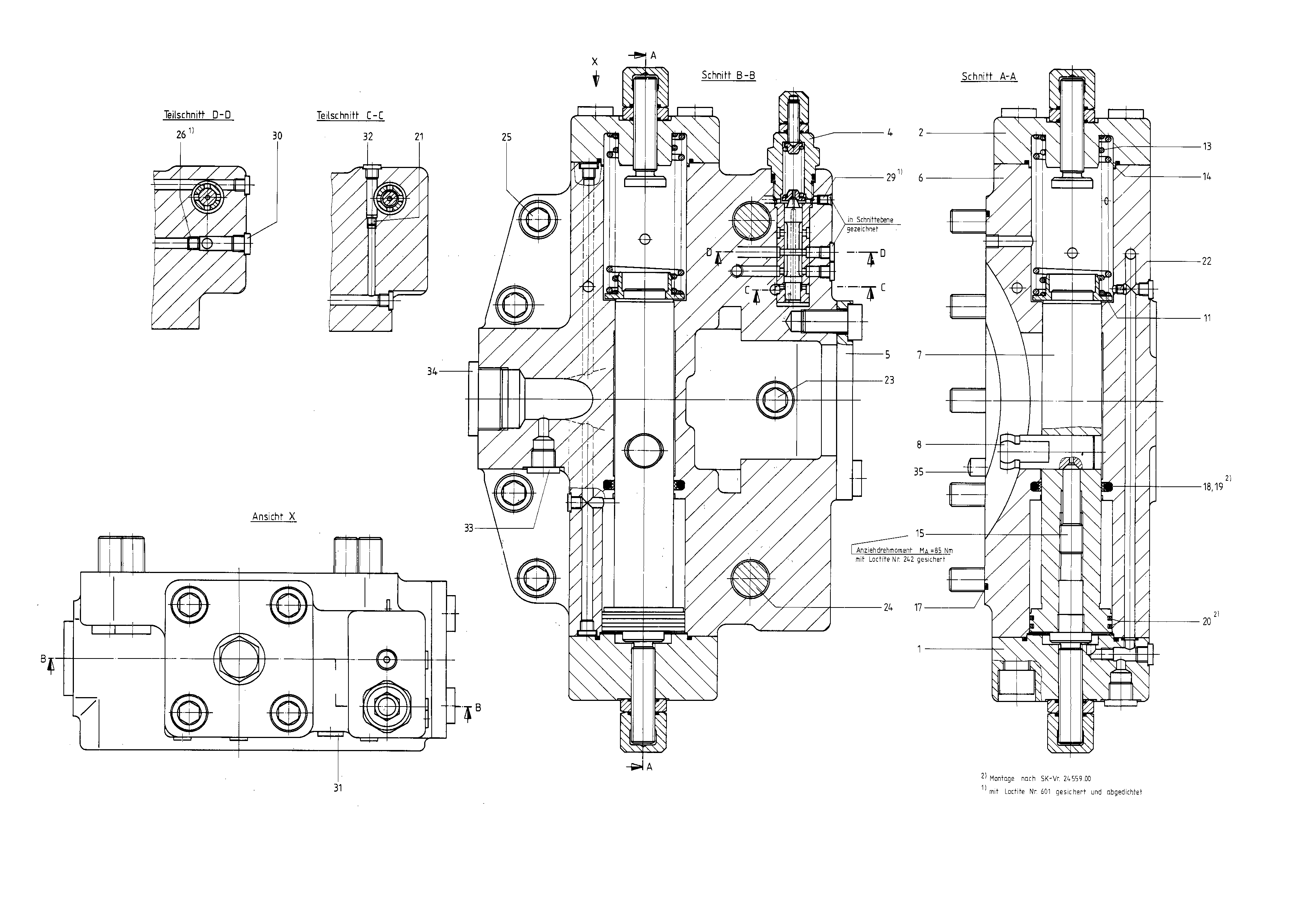

Control Bosch Rexroth series A7VO, type code VA7VO250DR/60R-SO6, material number R910930996. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: pressure controller (DR). Direction of rotation: viewed on drive shaft (R).
- Number
- R910930996
- Type code
- V A7V O 250 DR /60R -SO 6
- Group
- A7VO 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912089 | COVER Assembly parts list →L | 1 | ||
| 2 | R910912088 | COVER Assembly parts list →L | 1 | |
| R902533145 | VALVE INSERT | 1 | ||
| R910918561 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 6 | R910920534 | COVER PLATE | 1 | |
| R910909481 | POSITIONING PISTON | 1 | ||
| 8 | R902413803 | POSITIONING STUD | 1 | |
| 11 | R910909485 | SPRING DISK | 1 | |
| R910909214 | COMPRESSION SPRING | 1 | ||
| 14 | R910909215 | COMPRESSION SPRING | 1 | |
| R902475687 | SETSCREW | 1 | ||
| 17 | R910905253 | O-RINGD | 1 | |
| 18 | R910907799 | ROD SEALD | 1 | |
| 19 | R910514942 | O-RINGD | 1 | |
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910836761 | NOZZLE | 1 | ||
| R910836761 | NOZZLE | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 1 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| 26 | R910101079 | SETSCREW | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 11 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| 34 | R909153862 | SCREW PLUGD | 1 | |
| R910514179 | STRAIGHT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Control device | Pressure controller | DR |
| Direction of rotation | Viewed on drive shaft | R |
