Unit · AXIAL-PISTON PUMP
AA10VO28DFSR/31R-PSC62K01-SO160R910931303
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFSR/31R-PSC62K01-SO160, material number R910931303. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 160.
- Number
- R910931303
- Type code
- AA10VO28DFSR/31R-PSC62K01-SO160
- Group
- A10VO 28
- Edition
- 06/2020

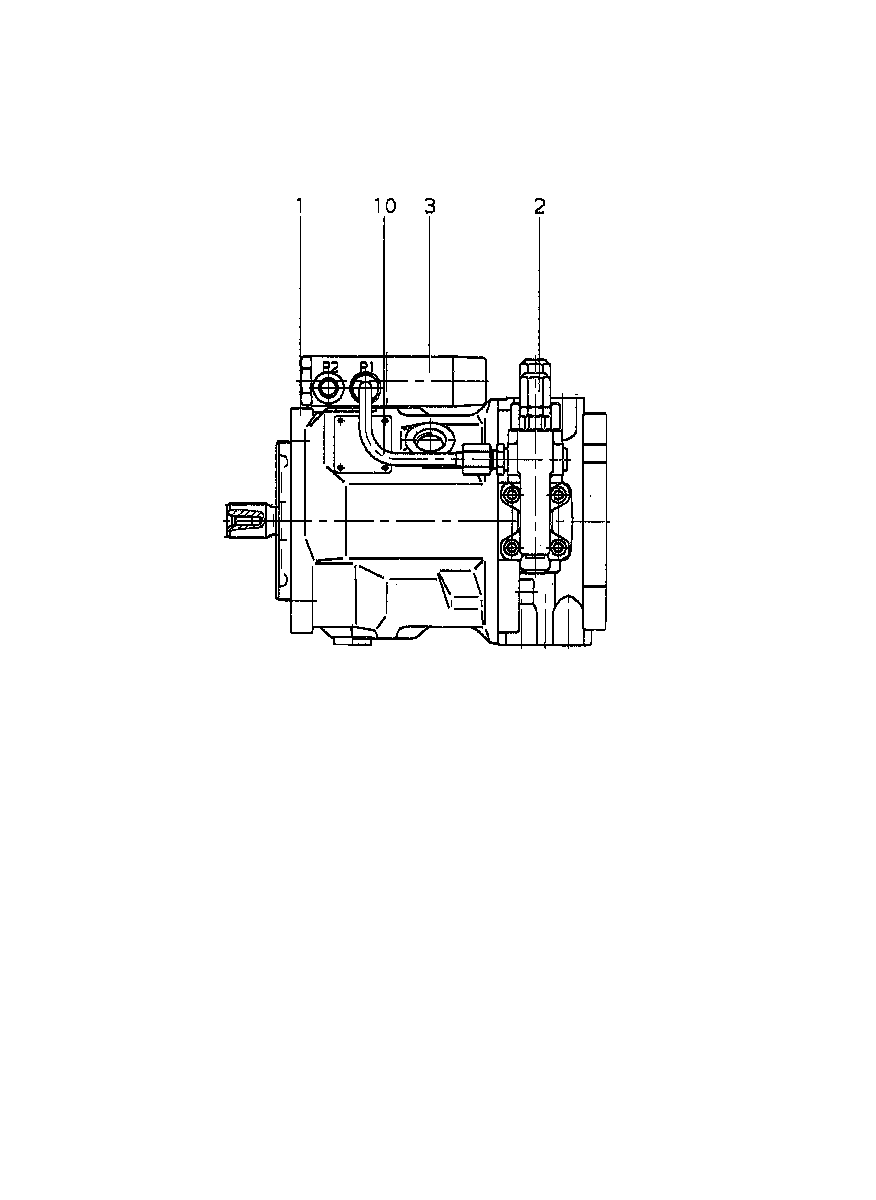

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910909324 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R902490090 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R902533227 | CONTROL VALVE Assembly parts list →L | 1 | |
| 10 | R910948341 | PIPING Assembly parts list →L | 1 | |
| 14 | R909154478 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
