Unit · BASE UNIT
G A10VSO 28 OV /31R-VPA12K54 -SO136R910931459
Base unit Bosch Rexroth series A10VSO, type code GA10VSO28OV/31R-VPA12K54-SO136, material number R910931459. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 136.
- Number
- R910931459
- Type code
- G A10VSO 28 OV /31R-VPA12K54 -SO136
- Group
- A10VSO 28
- Edition
- 06/2020

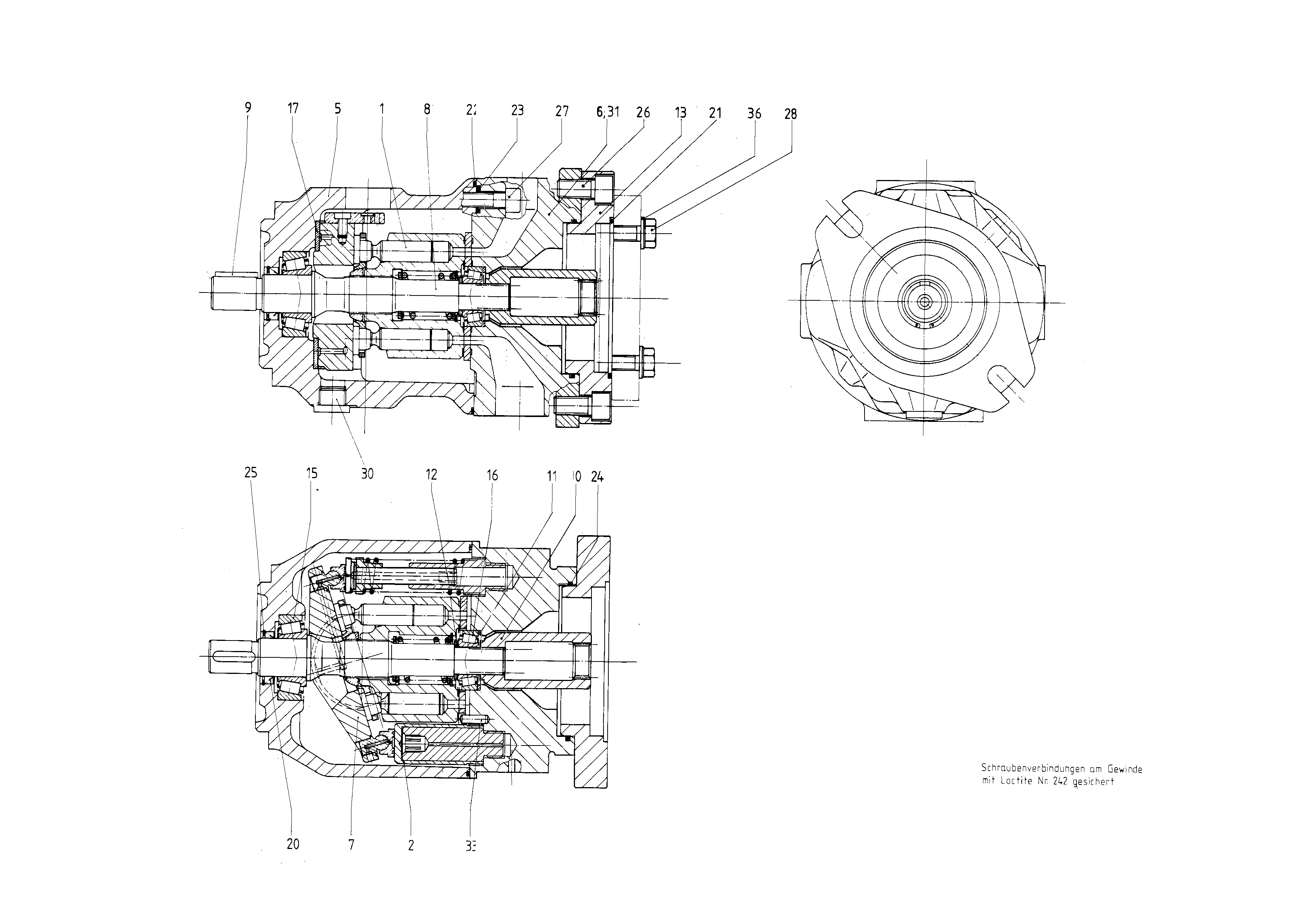

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910916328 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550219 | PUMP HOUSING | 1 | ||
| R910997608 | CONNECTION PLATE | 1 | ||
| R910961001 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R910920122 | SPLINED COUPLING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910918216 | INTERMEDIATE FLANGE | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910397962 | O-RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R910905441 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R910942668 | BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
