Unit · ROTARY GROUP
TW A4VSG 250 M/10X-VZBNR910931854
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG250M/10X-VZBN, material number R910931854. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Filtration: without filter (N).
- Number
- R910931854
- Type code
- TW A4VSG 250 M/10X-VZBN
- Group
- A4VSG 250
- Edition
- 06/2020

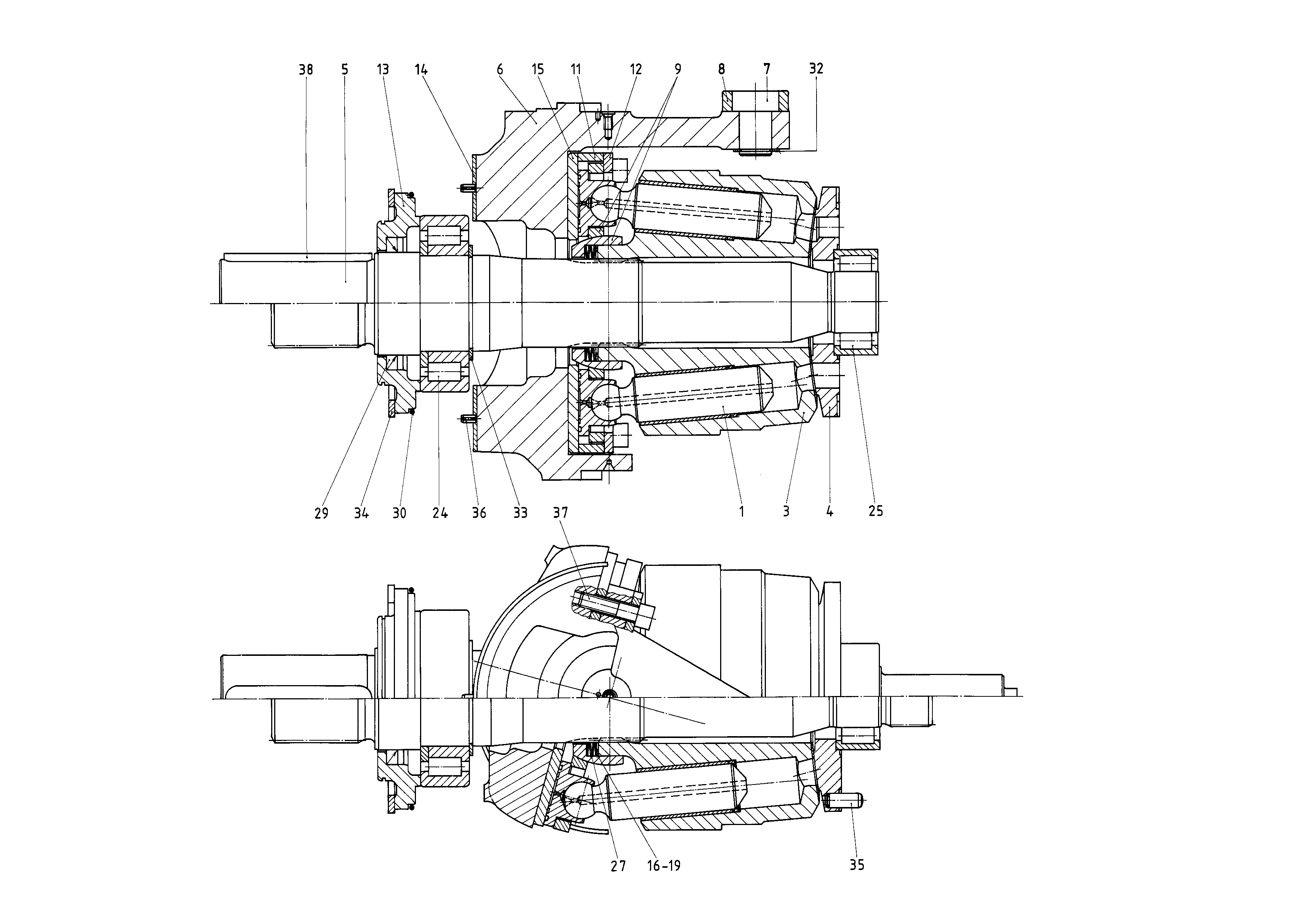

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400847 | PISTON PAD | 9 | ||
| 3 | R910933060 | CYLINDER | 1 | |
| R910920285 | DISTRIBUTOR PLATE | 1 | ||
| R902408947 | DRIVE SHAFT | 1 | ||
| R910974944 | SWASH PLATE | 1 | ||
| R910909319 | DRIVER PIVOT | 1 | ||
| R910909564 | SLIDER | 1 | ||
| R902483497 | RETAINING PLATE | 1 | ||
| 10 | R902483558 | RETAINING BALL | 1 | |
| R902570172 | SEGMENT | 2 | ||
| R902412893 | REPAIR KIT | 1 | ||
| R910984546 | BEARING SHELL | 2 | ||
| R910909343 | SLIDING DISC | 1 | ||
| 16 | R910847607 | SHIM RING | 1 | |
| 17 | R909408065 | SHIM RING | 1 | |
| 18 | R909401887 | SHIM RING | 1 | |
| 19 | R910847631 | SHIM RING | 1 | |
| R910960739 | CYL. ROLLER BEARING | 1 | ||
| R910909424 | CYL. ROLLER BEARING | 1 | ||
| 27 | R909403548 | CUP-SPRING STACK | 1 | |
| R910187941 | RETAINING RING | 1 | ||
| R910105856 | RETAINING RING | 1 | ||
| R913000823 | STRAIGHT PIN | 1 | ||
| R910941972 | CLAMPING SLEEVE | 2 | ||
| R902650867 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Filtration | Without filter | N |
