Unit · AXIAL-PISTON PUMP
AA10VO140DFR1/31L-PSD11N00-SO420R910932215
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFR1/31L-PSD11N00-SO420, material number R910932215. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 420.
- Number
- R910932215
- Type code
- AA10VO140DFR1/31L-PSD11N00-SO420
- Group
- A10VO 140
- Edition
- 06/2020

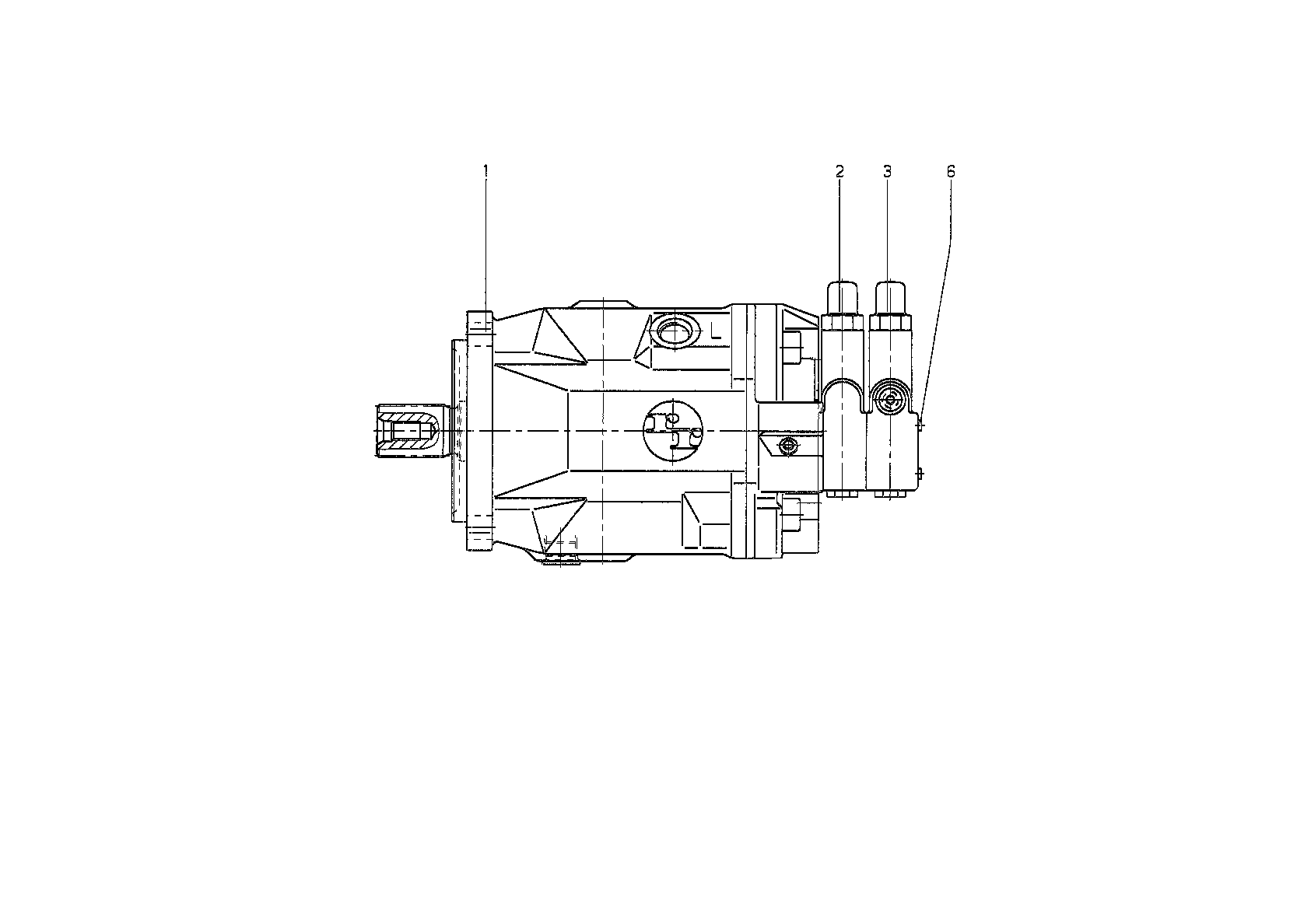

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910931762 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R910920180 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R910920244 | CONTROL VALVE Assembly parts list →L | 1 | |
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909151979 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
