Unit · CONTROL
V AA6V M 250 HA1 /61-V527 -SO 44R910932252
Control Bosch Rexroth series A6VM, type code VAA6VM250HA1/61-V527-SO44, material number R910932252. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) (HA1). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527).
- Number
- R910932252
- Type code
- V AA6V M 250 HA1 /61-V527 -SO 44
- Group
- A6VM 250
- Edition
- 06/2020

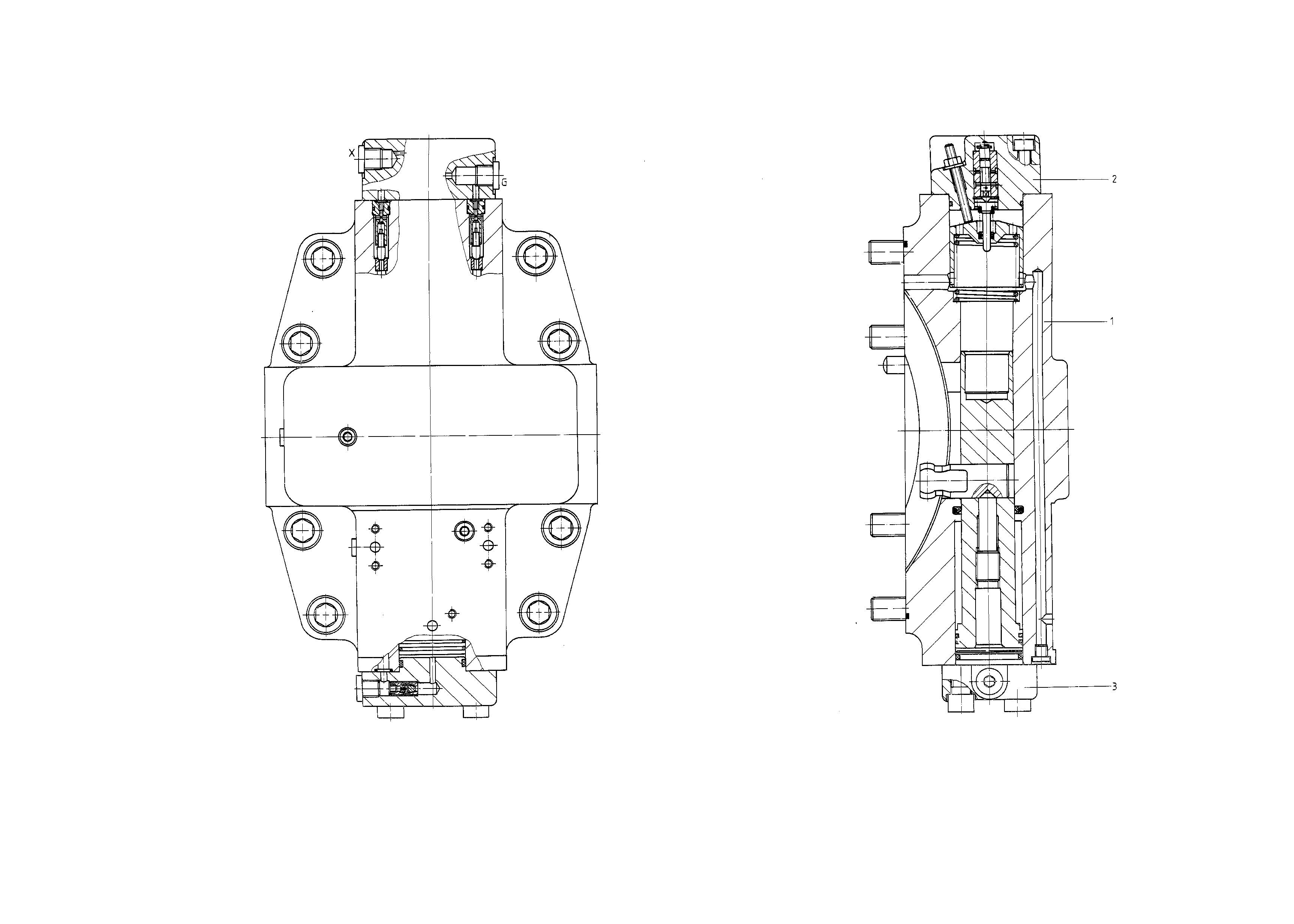

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910917684 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910932253 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910917686 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) | HA1 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
