Unit · BASE UNIT
GA4VSG40'HD'M/11R-PZB10N00R910932335

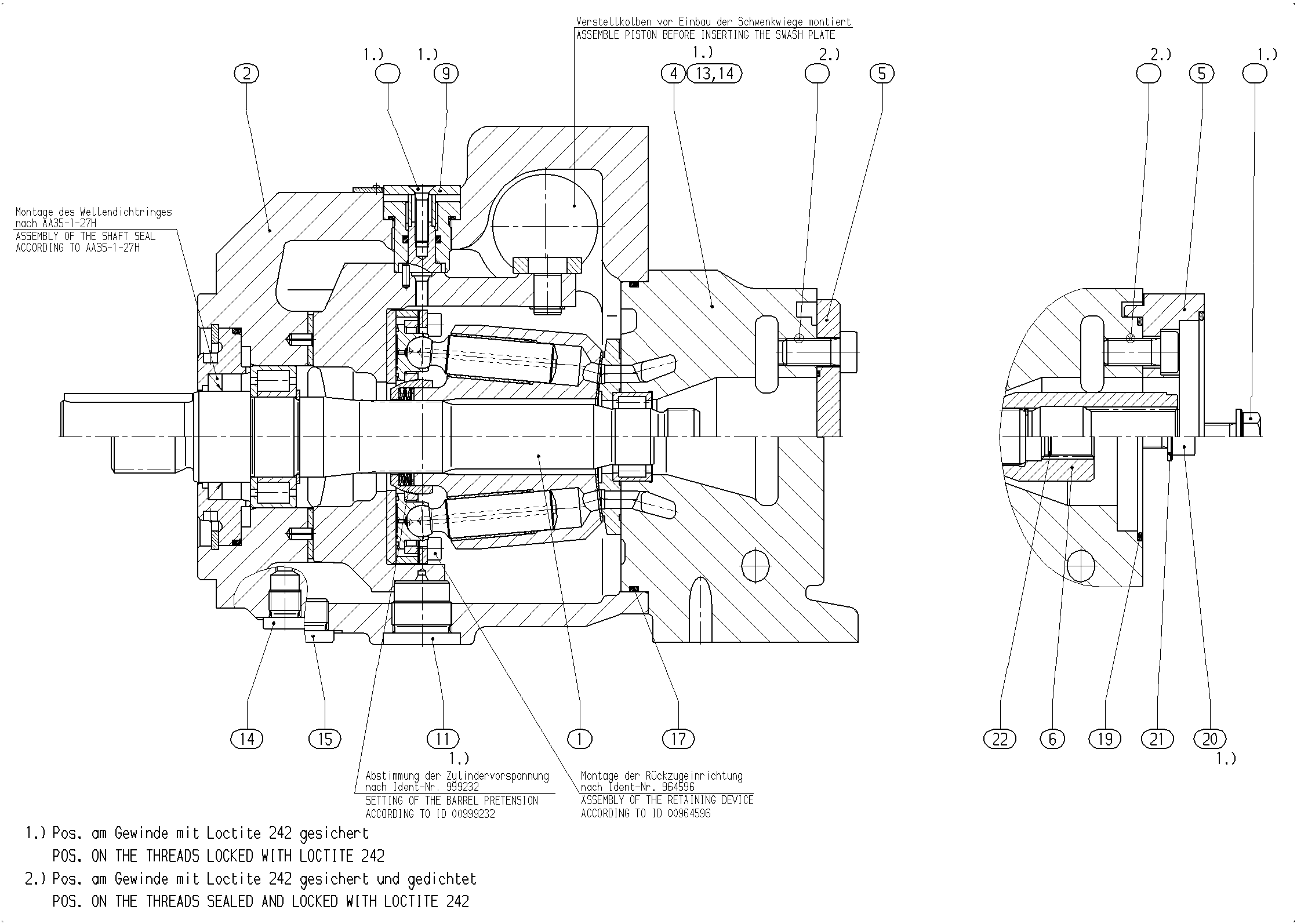

Base unit Bosch Rexroth series A4VSO, type code GA4VSG40'HD'M/11R-PZB10N00, material number R910932335. Nominal size: NG 40. Axial piston unit: swashplate design (A4VSG).
- Number
- R910932335
- Type code
- GA4VSG40'HD'M/11R-PZB10N00
- Group
- A4VSG 40
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424878 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910919414 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910944483 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910944572 | STUD BOLT Assembly parts list →L | 1 | ||
| R910126594 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R910102989 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 40 | 40 |
