Unit · AXIAL-PISTON PUMP
PA4VSG500HD1/11X-VPH10N009N-SO405R910933352
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500HD1/11X-VPH10N009N-SO405, material number R910933352. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: without through drive (N00). Valves: SDVB valve block mounted (9). Filtration: without filter (N). Special version no. 405.
- Number
- R910933352
- Type code
- PA4VSG500HD1/11X-VPH10N009N-SO405
- Group
- A4VSG 500
- Edition
- 06/2020

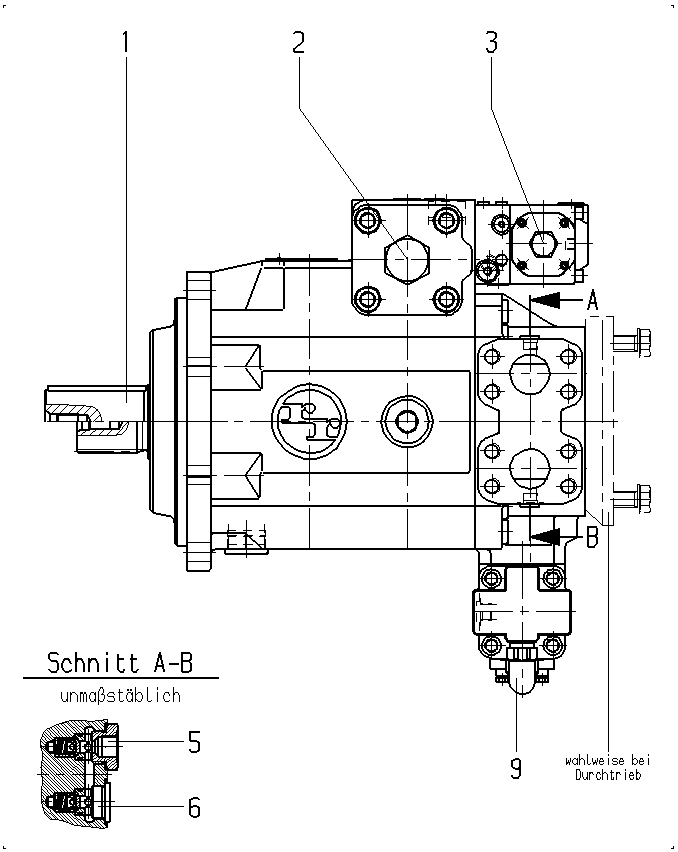

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910928612 | BASE UNIT Assembly parts list →L | 1 | ||
| R910933828 | CONTROL Assembly parts list →L | 1 | ||
| R910924418 | SPRING PACK Assembly parts list →L | 1 | ||
| 4 | R910933355 | VALVE BLOCK Assembly parts list →L | 1 | |
| R910948831 | VALVE MOUNTING KIT | 1 | ||
| R910907074 | VALVE MOUNTING KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | Without through drive | N00 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
