Unit · AXIAL-PISTON MOTOR
AAA10VE45HZ/50W1-PSF68B011R910933394
Axial piston motor Bosch Rexroth series A10VM, type code AAA10VE45HZ/50W1-PSF68B011, material number R910933394. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Control devices: two-point control hydraulic without switching time (HZ). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Mounting flange: special flange; 2 hole (F). Valves: without valve (0).
- Number
- R910933394
- Type code
- AAA10VE45HZ/50W1-PSF68B011
- Group
- A10VE 45
- Edition
- 06/2020

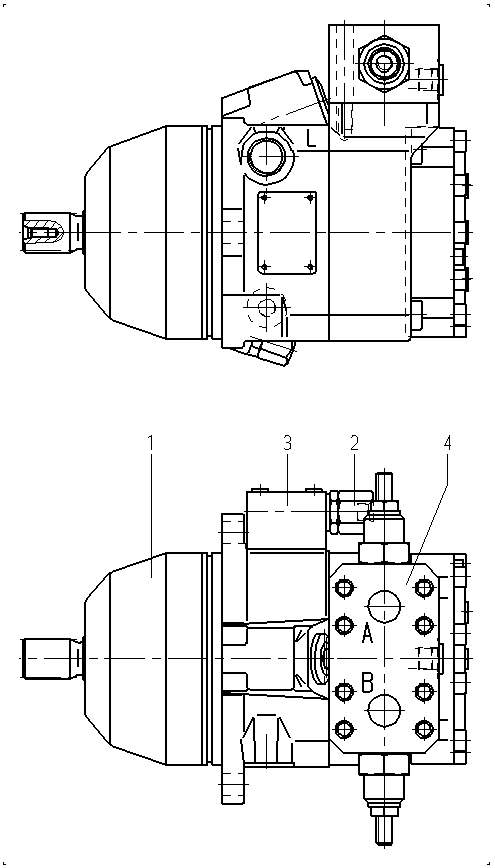

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910933390 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410659 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910929640 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R910942558 | VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic without switching time | HZ |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Mounting flange | Special flange; 2 hole | F |
| Valves | Without valve | 0 |
