Unit · AXIAL-PISTON MOTOR
AA6VM500EZ2/63W1-PZH020VBR910935019
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM500EZ2/63W1-PZH020VB, material number R910935019. Nominal size: NG 500. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Swivel angle sensor: optical swivel angle sensor (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R910935019
- Type code
- AA6VM500EZ2/63W1-PZH020VB
- Group
- A6VM 500
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

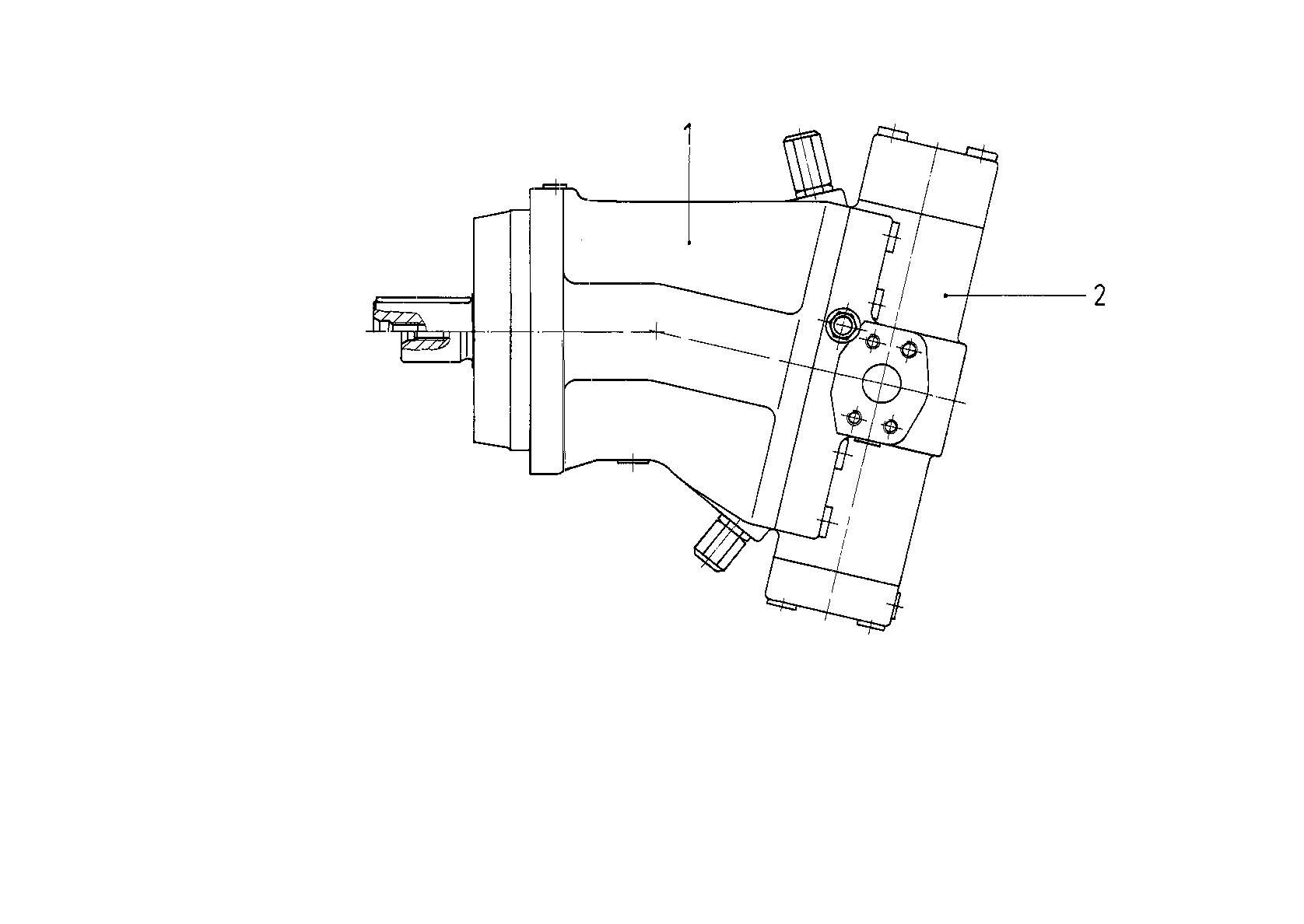

| 1 | R910926840 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910932540 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 500 | 500 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
