Unit · AXIAL-PISTON PUMP
AAA10VO45DFR1/50L-PSC62K02-SO325R910935564
Axial piston pump Bosch Rexroth series A10VO, type code AAA10VO45DFR1/50L-PSC62K02-SO325, material number R910935564. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Special version no. 325.
- Number
- R910935564
- Type code
- AAA10VO45DFR1/50L-PSC62K02-SO325
- Group
- A10VO 45
- Edition
- 06/2020

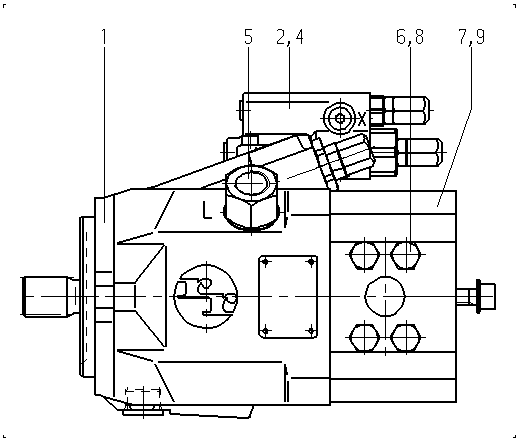

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935312 | BASE UNIT Assembly parts list →L | 1 | ||
| R902472494 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R910792772 | ADAPTER Assembly parts list →L | 1 | ||
| R910748889 | HEXAGON SCREW | 4 | ||
| R910748919 | HEXAGON SCREW | 4 | ||
| R910750565 | SPRING LOCK WASHER | 4 | ||
| R910750581 | SPRING LOCK WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
