Unit · BASE UNIT
GEAA10VSO 16 OV /30R-PKC62N00 -SO 56R910935643
Base unit Bosch Rexroth series A10VSO, type code GEAA10VSO16OV/30R-PKC62N00-SO56, material number R910935643. Nominal size: NG 16. Version: HFA, HFB, HFC hydraulic fluid (E). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 56.
- Number
- R910935643
- Type code
- GEAA10VSO 16 OV /30R-PKC62N00 -SO 56
- Group
- A10VSO 16
- Edition
- 06/2020

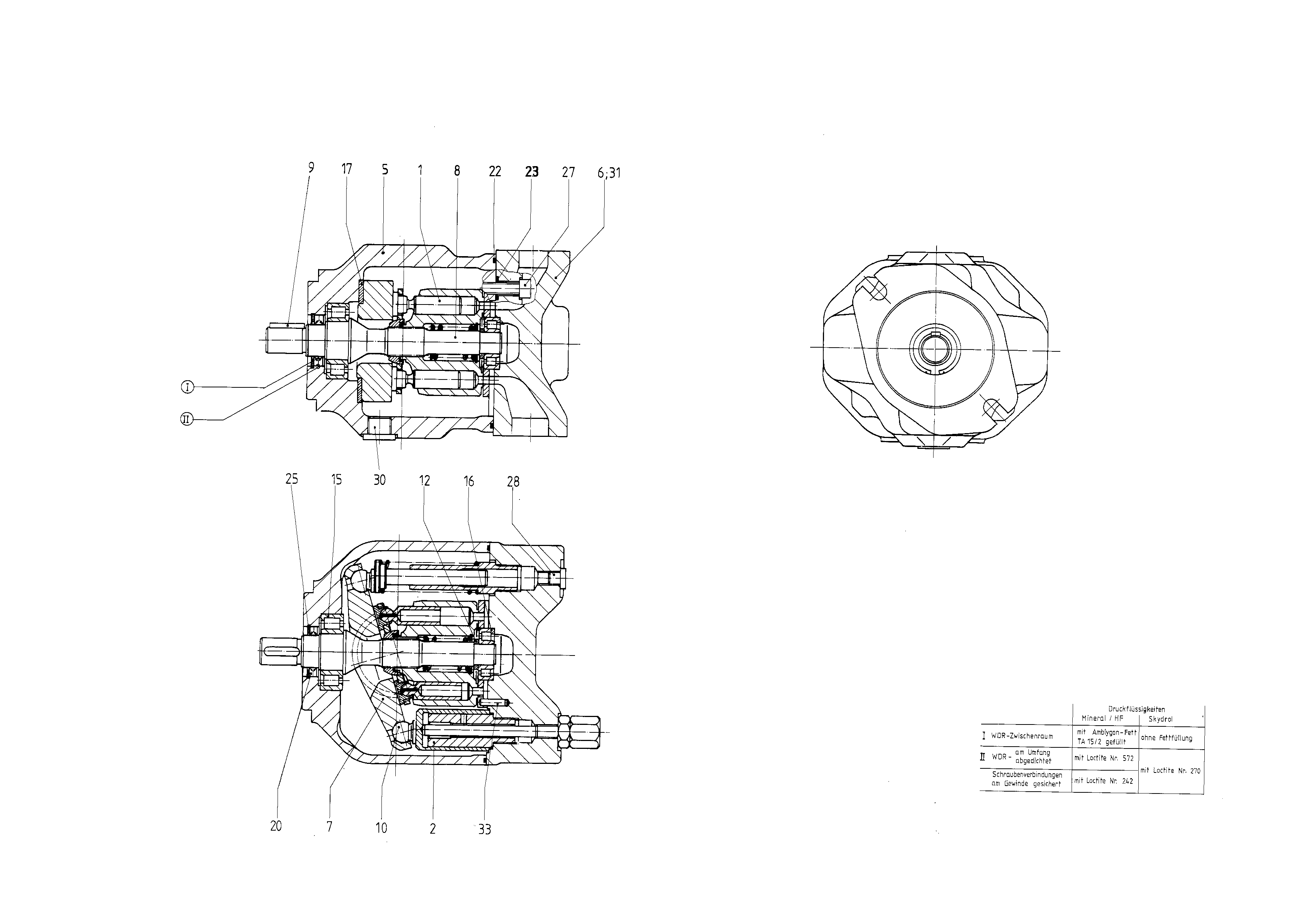

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910940435 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902538168 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910935644 | PUMP HOUSING | 1 | ||
| 6 | R910940752 | CONNECTION PLATE | 1 | |
| R910960809 | SWASH PLATE | 1 | ||
| R902413733 | DRIVE SHAFT | 1 | ||
| R910930528 | PARALLEL KEY | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| 15 | R910934965 | CYL. ROLLER BEARING | 1 | |
| R910931556 | CYL. ROLLER BEARING | 1 | ||
| 17 | R910925266 | BEARING SHELL | 2 | |
| R910931541 | SHAFT SEALING RINGD | 1 | ||
| R910926045 | O-RINGD | 1 | ||
| R913052101 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910277193 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 16 | 16 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
