Unit · ROTARY GROUP
TW A4VSO 125 M/22R-PPBN00R910936295
Rotary group Bosch Rexroth series A4VSO, type code TWA4VSO125M/22R-PPBN00, material number R910936295. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: without through drive and auxiliary pump (N00).
- Number
- R910936295
- Type code
- TW A4VSO 125 M/22R-PPBN00
- Group
- A4VSO 125
- Edition
- 07/2020

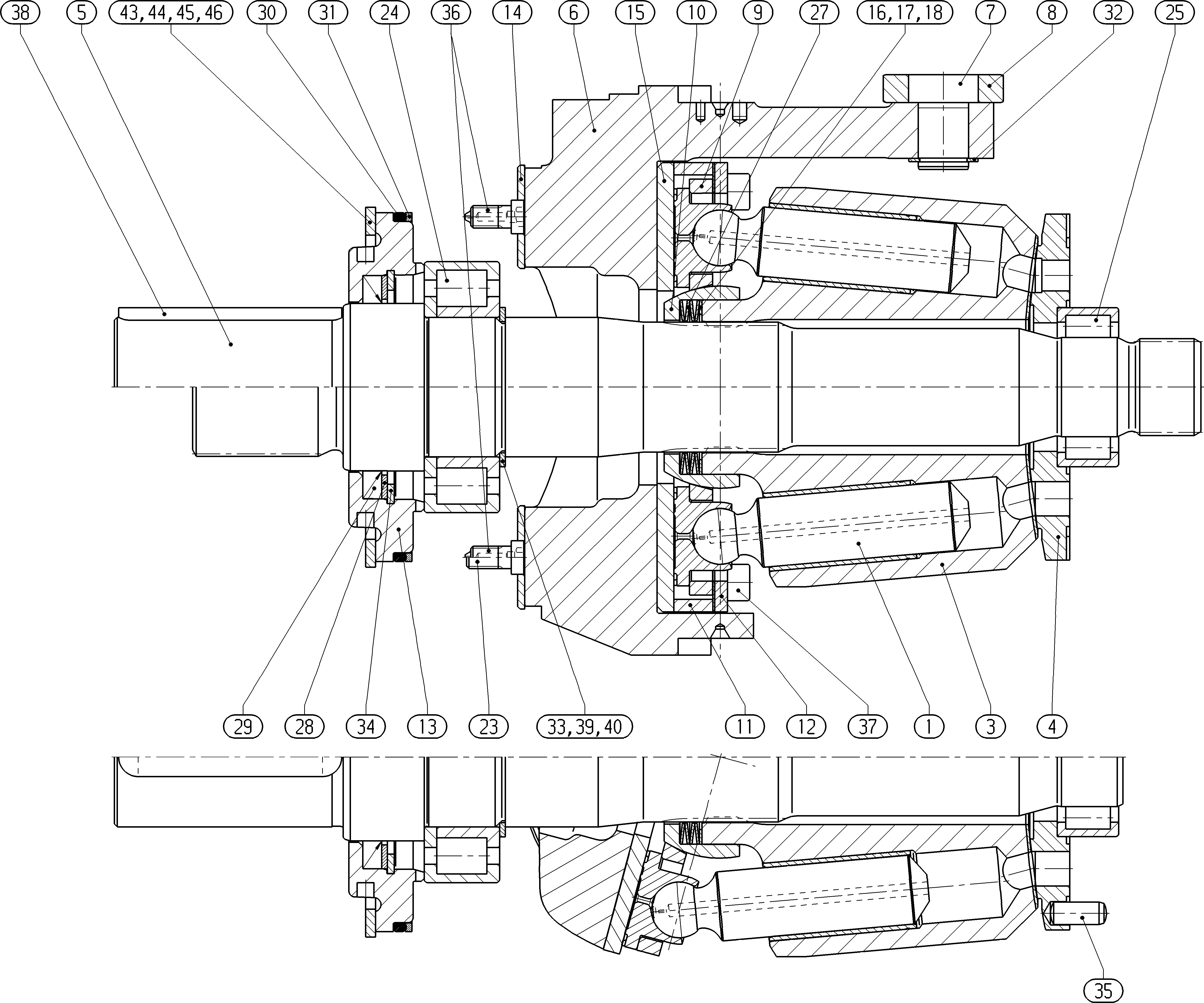

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400860 | PISTON PAD | 9 | ||
| R902463686 | CYLINDER | 1 | ||
| R910936320 | DISTRIBUTOR PLATE | 1 | ||
| R902409091 | DRIVE SHAFT | 1 | ||
| R910796433 | SWASH PLATE | 1 | ||
| R910797332 | DRIVER PIVOT | 1 | ||
| R910923656 | SLIDER | 1 | ||
| R902534515 | RETAINING PLATE | 1 | ||
| R910803064 | RETAINING BALL | 1 | ||
| R910797367 | SPACER SEGMENT | 2 | ||
| R902570169 | SEGMENT | 2 | ||
| R910991563 | SEALING FLANGE | 1 | ||
| R910946522 | BEARING SHELL | 2 | ||
| R910903603 | SLIDING DISC | 1 | ||
| R910846473 | SHIM RING | 1 | ||
| R910846465 | SHIM RING | 1 | ||
| R909078321 | SHIM RING | 1 | ||
| R910949038 | SETTING SCREW | 1 | ||
| R910960737 | CYL. ROLLER BEARING | 1 | ||
| R910840904 | CYL. ROLLER BEARING | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902400750 | SHIM RING | 1 | ||
| R910381209 | SHAFT SEALING RINGD | 1 | ||
| R910112208 | O-RINGD | 1 | ||
| R902400755 | BACKUP RING | 1 | ||
| R910126691 | RETAINING RING | 1 | ||
| R910991664 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R910932882 | SETTING SCREW | 1 | ||
| R902650865 | SOCKET HEAD CAP SCREW | 4 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| R910991663 | RETAINING RING | 1 | ||
| R910991662 | RETAINING RING | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 | ||
| R910991668 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | without through drive and auxiliary pump | N00 |
