Unit · BASE UNIT
GA4VSO125M/22R-PPB13N00R910936354
Base unit Bosch Rexroth series A4VSO, type code GA4VSO125M/22R-PPB13N00, material number R910936354. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: without through drive and auxiliary pump (N00).
- Number
- R910936354
- Type code
- GA4VSO125M/22R-PPB13N00
- Group
- A4VSO 125
- Edition
- 07/2020

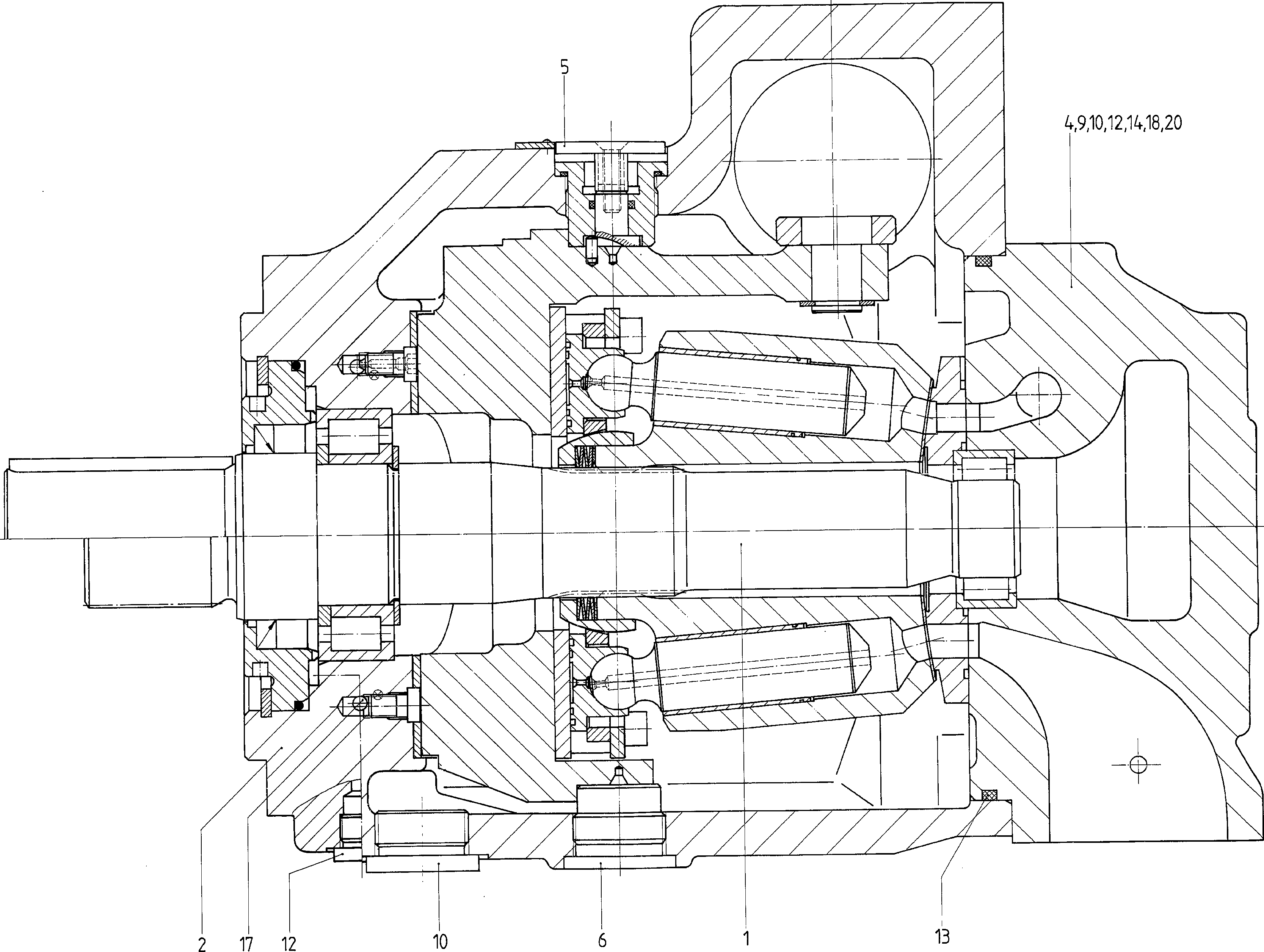

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910936295 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910935968 | CONNECTION PLATE | 1 | ||
| R910928485 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153861 | SCREW PLUGD | 4 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R910783854 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922276 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | without through drive and auxiliary pump | N00 |
