Unit · AXIAL-PISTON MOTOR
AAA10VM45EZ1/50W1-PSC68B010-SO282R910936610
Axial piston motor Bosch Rexroth series A10VM, type code AAA10VM45EZ1/50W1-PSC68B010-SO282, material number R910936610. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Control devices: two-point control electric with U = 12 V without switching solenoid switching time (EZ1). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: without valve (0). Special version no. 282.
- Number
- R910936610
- Type code
- AAA10VM45EZ1/50W1-PSC68B010-SO282
- Group
- A10VM 45
- Edition
- 06/2020

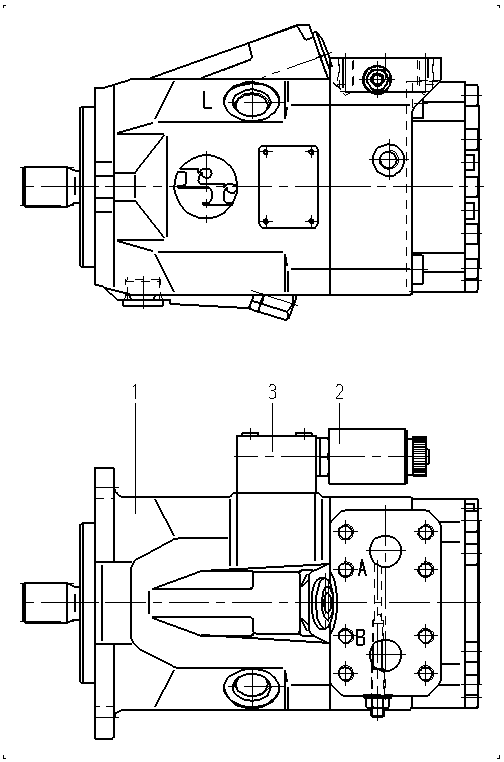

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910936474 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453749 | SEAT VALVE Assembly parts list →L | 1 | ||
| R910929640 | VALVE HOUSING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control electric with U = 12 V without switching solenoid switching time | EZ1 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Without valve | 0 |
