Unit · BASE UNIT
GA4VSG500M/22R-PPH10K68R910937269
Base unit Bosch Rexroth series A4VSG, type code GA4VSG500M/22R-PPH10K68, material number R910937269. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 101-2 (B) 7/8 in 13T 16/32DP (K68).
- Number
- R910937269
- Type code
- GA4VSG500M/22R-PPH10K68
- Group
- A4VSG 500
- Edition
- 07/2020

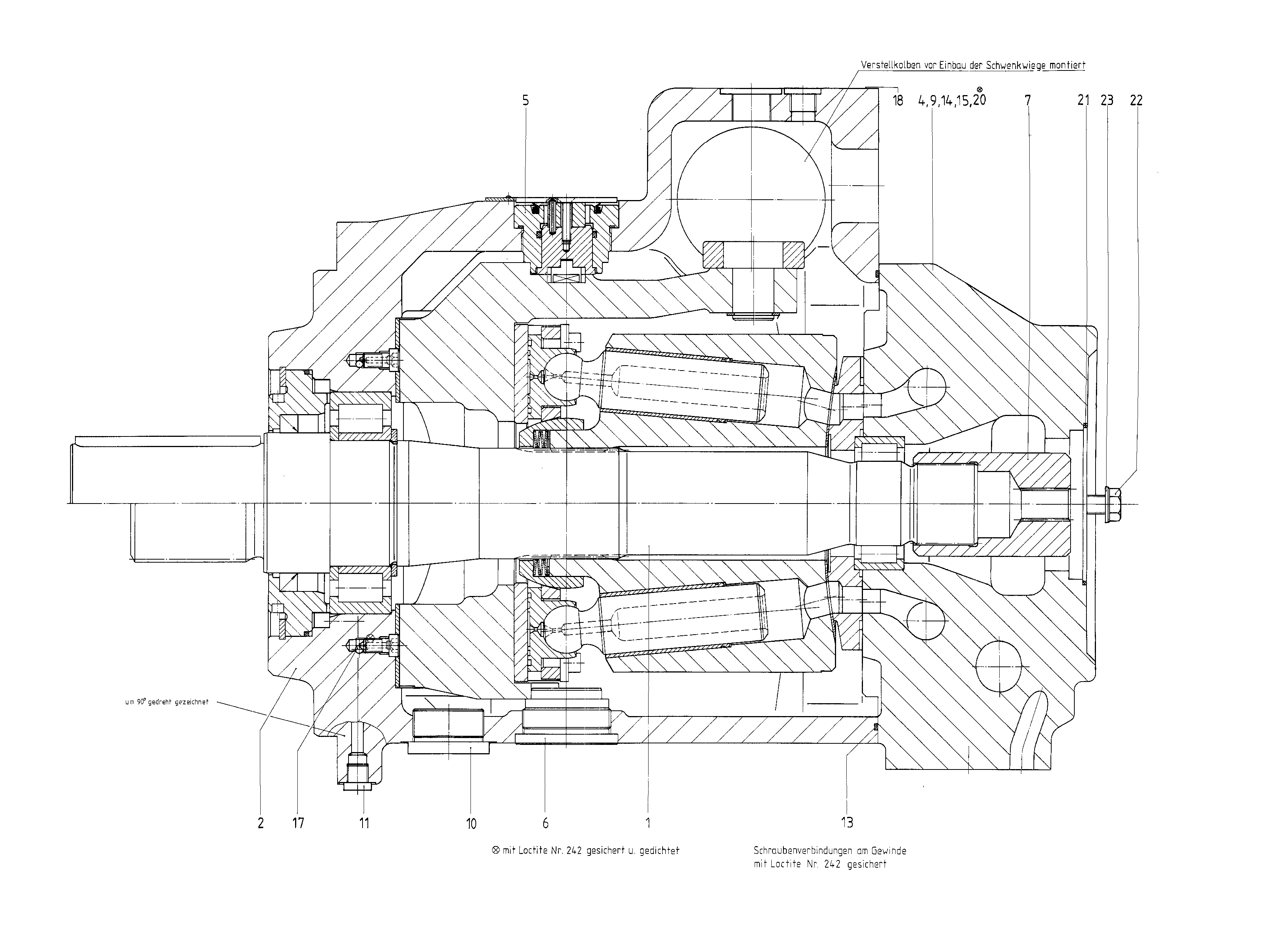

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910933972 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910970353 | PUMP HOUSING | 1 | ||
| R910937270 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910919860 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R902544277 | STUD BOLT Assembly parts list →L | 1 | ||
| R902497508 | SPLINED COUPLING | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 8 | ||
| R910941726 | SCREW PLUG | 3 | ||
| R909153364 | SCREW PLUG | 2 | ||
| 12 | R909153815 | SCREW PLUGD | 1 | |
| R910914695 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R910923831 | R-RINGD | 2 | ||
| 16 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910942068 | THROTTLE SCREW | 1 | ||
| R910384259 | O-RINGD | 1 | ||
| R910714917 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
