Unit · AXIAL-PISTON PUMP
AEA10VSO100DRG/31L-PPA12K27R910937344
Axial piston pump Bosch Rexroth series A10VSO, type code AEA10VSO100DRG/31L-PPA12K27, material number R910937344. Nominal size: NG 100. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).
- Number
- R910937344
- Type code
- AEA10VSO100DRG/31L-PPA12K27
- Group
- A10VSO 100
- Edition
- 07/2020

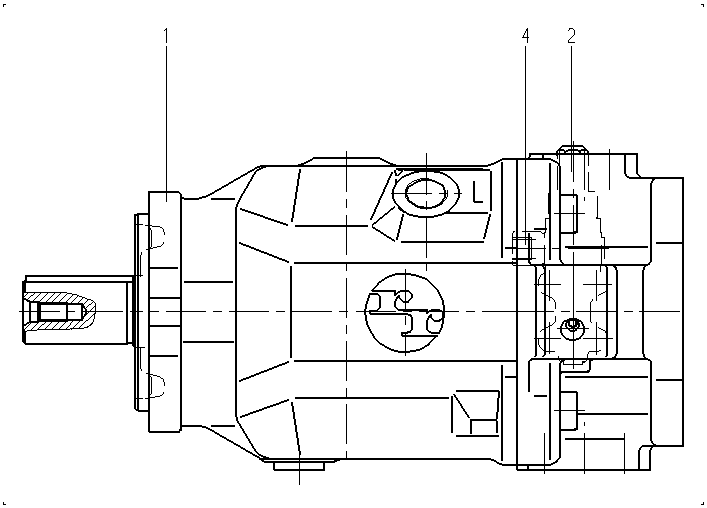

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910937342 | BASE UNIT Assembly parts list →L | 1 | ||
| R902490090 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
