Unit · BASE UNIT
G AA10V M 45 OV /50W1-PUC64 -SO271R910937375
Base unit Bosch Rexroth series A10VM, type code GAA10VM45OV/50W1-PUC64-SO271, material number R910937375. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) (7).
- Number
- R910937375
- Type code
- G AA10V M 45 OV /50W1-PUC64 -SO271
- Group
- A10VM 45
- Edition
- 06/2020

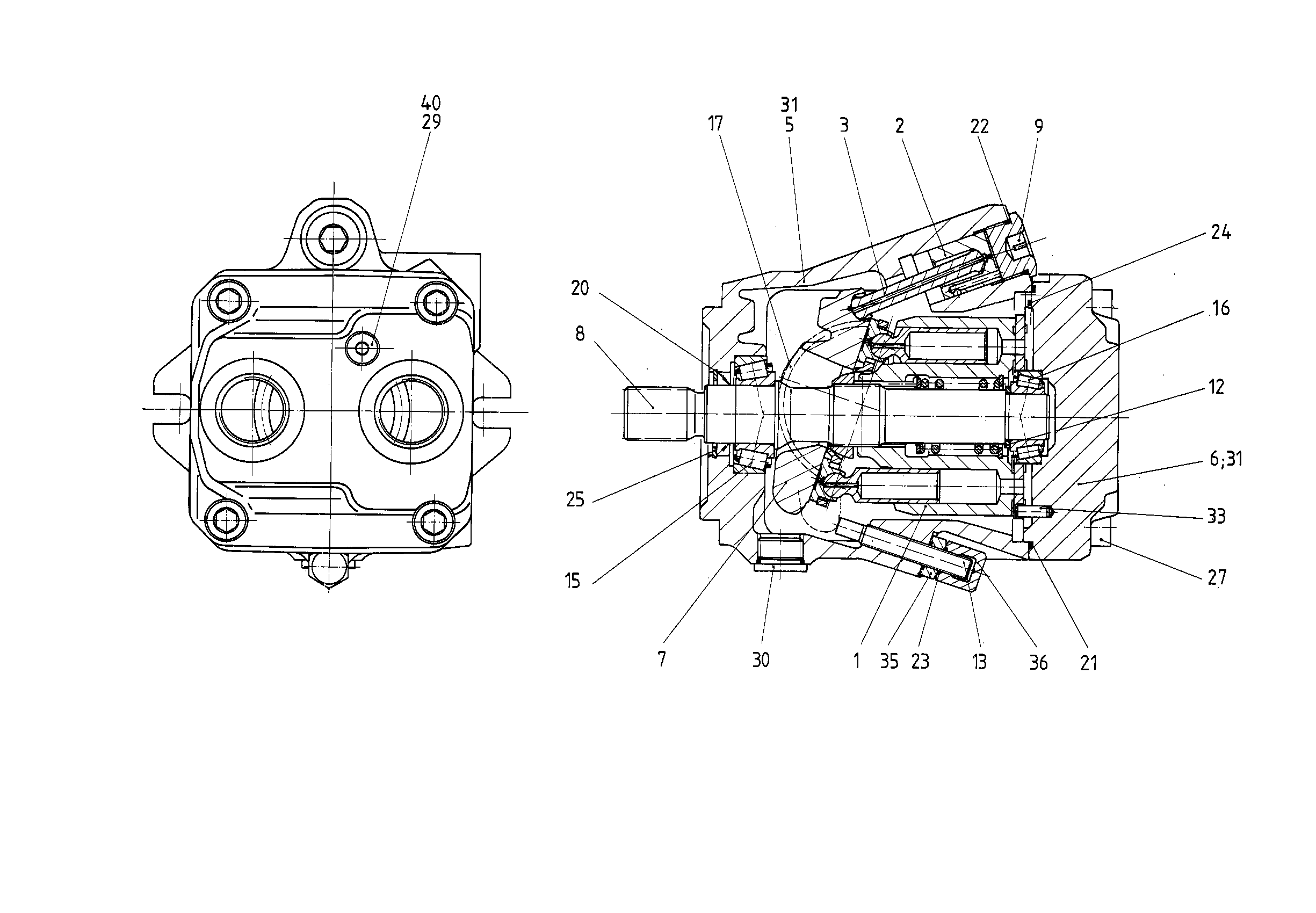

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902435770 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| R902439068 | PISTON ROD | 1 | ||
| 5 | R910933802 | MOTOR HOUSING | 1 | |
| R910937377 | CONNECTION PLATE | 1 | ||
| 7 | R902443505 | SWASH PLATE | 1 | |
| 8 | R902417387 | DRIVE SHAFT | 1 | |
| 9 | R902447686 | SCREW PLUG Assembly parts list →L | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| 13 | R910933408 | STOP SCREW | 1 | |
| 15 | R910704946 | TAPERED-ROLLER BEARING | 1 | |
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| 23 | R910514691 | O-RINGD | 2 | |
| R910942134 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011600 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| R910904041 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) | 7 |
