Unit · AXIAL-PISTON MOTOR
AAA10VM45HZ/50W1-PUC64-SO271R910937409
Axial piston motor Bosch Rexroth series A10VM, type code AAA10VM45HZ/50W1-PUC64-SO271, material number R910937409. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control hydraulic without switching time (HZ). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) (7).
- Number
- R910937409
- Type code
- AAA10VM45HZ/50W1-PUC64-SO271
- Group
- A10VM 45
- Edition
- 06/2020

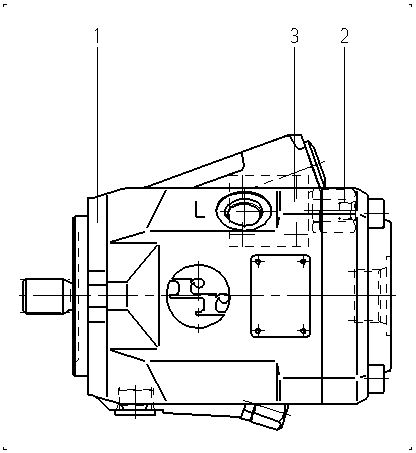

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910937375 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410659 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910929640 | VALVE HOUSING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic without switching time | HZ |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) | 7 |
