Unit · AXIAL-PISTON PUMP
AA7VO250HD1D/63L-PZB02R910937676
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO250HD1D/63L-PZB02, material number R910937676. Nominal size: NG 250.
- Number
- R910937676
- Type code
- AA7VO250HD1D/63L-PZB02
- Group
- A7VO 250
- Edition
- 06/2020

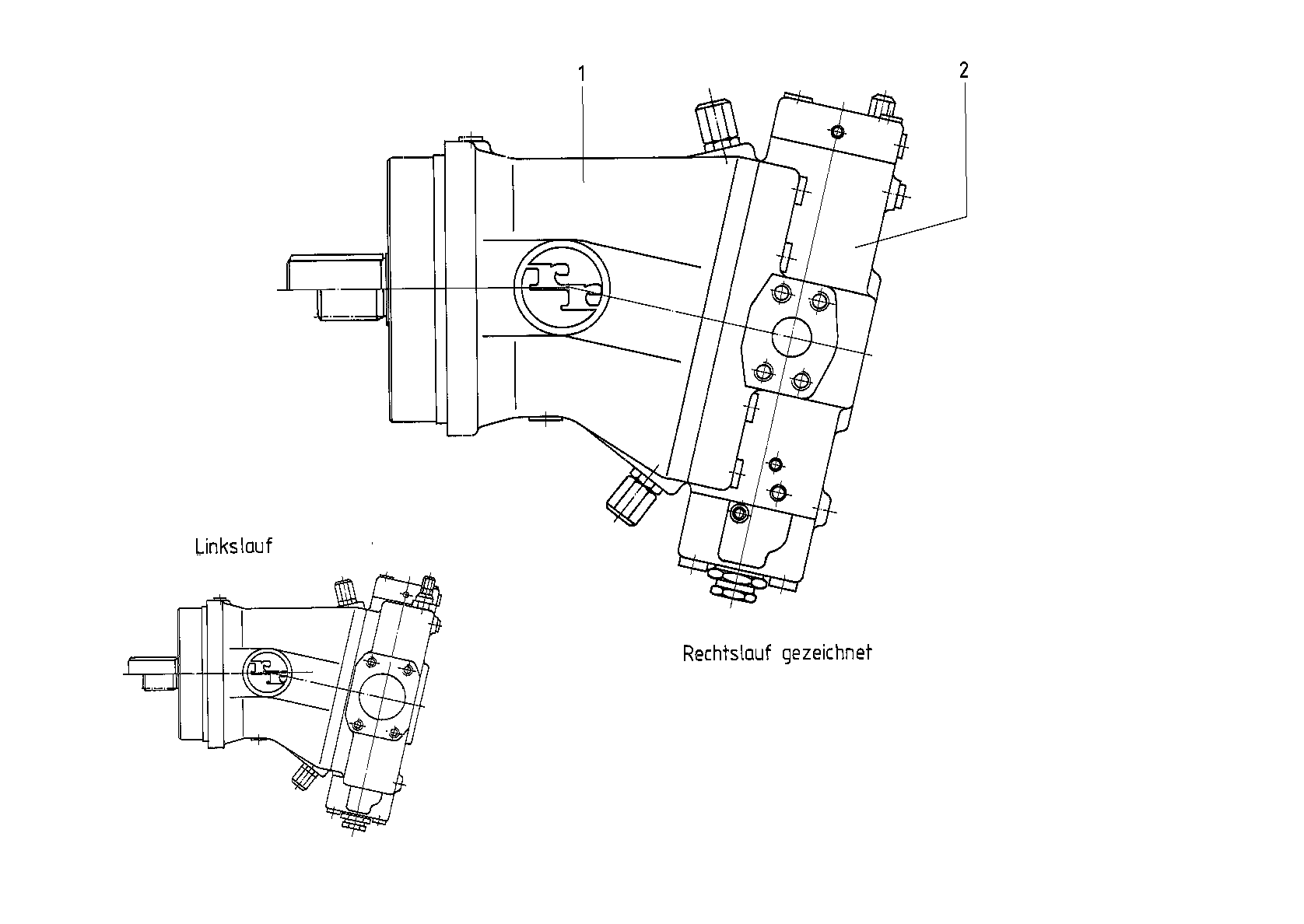

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910934367 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R910937678 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| Hydraulic control, pilot pressure dependent, with integrated pressure control (fixed setting) Δp = 10 bar | HD1D | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| Keyed parallel shaft to DIN 6885 | P | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 |
