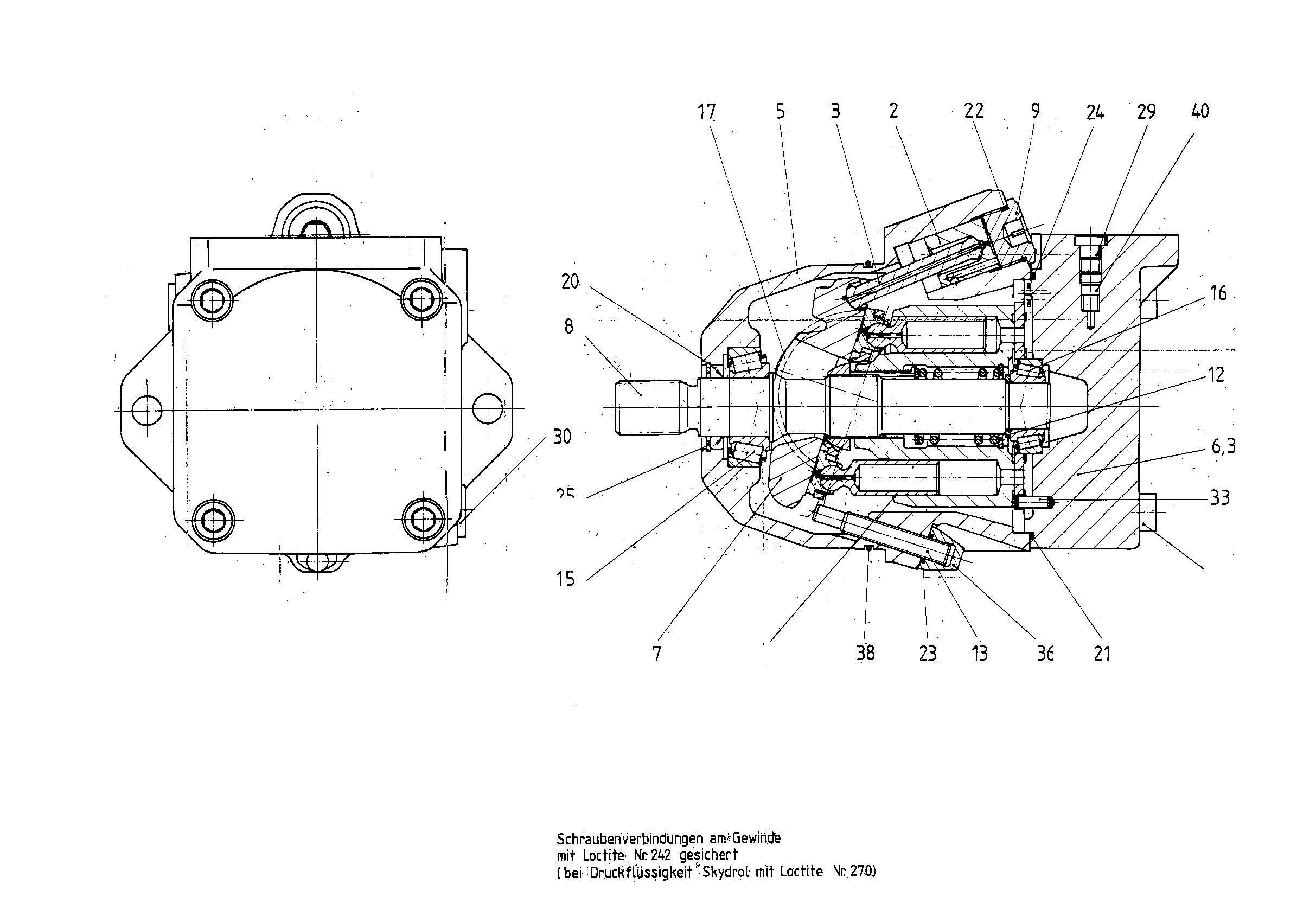

Unit · BASE UNIT
G AA10V E 45 OV /50W1-PSF68N000 -SO296R910937825
Base unit Bosch Rexroth series A10VM, type code GAA10VE45OV/50W1-PSF68N000-SO296, material number R910937825. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: without valve (0). Special version no. 296.
- Number
- R910937825
- Type code
- G AA10V E 45 OV /50W1-PSF68N000 -SO296
- Group
- A10VE 45
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902435770 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910993694 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902410510 | MOTOR HOUSING | 1 | ||
| R910931245 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| 8 | R910992268 | DRIVE SHAFT | 1 | |
| R902447686 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910928603 | STOP SCREW | 1 | ||
| 14 | R910987963 | STOP RING | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| R910514691 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| 25 | R902403814 | RETAINING RING | 1 | |
| 27 | R910126497 | SOCKET HEAD CAP SCREW | 4 | |
| R913011600 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 36 | R910931750 | CAP NUT | 1 | |
| R910926045 | O-RING | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| 47 | R909153861 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Without valve | 0 |
