Unit · CONTROL
V A4VSO 125 EM/20R910938072
Control Bosch Rexroth series A4VSO, type code VA4VSO125EM/20, material number R910938072. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O).
- Number
- R910938072
- Type code
- V A4VSO 125 EM/20
- Group
- A4VSO 125
- Edition
- 07/2020

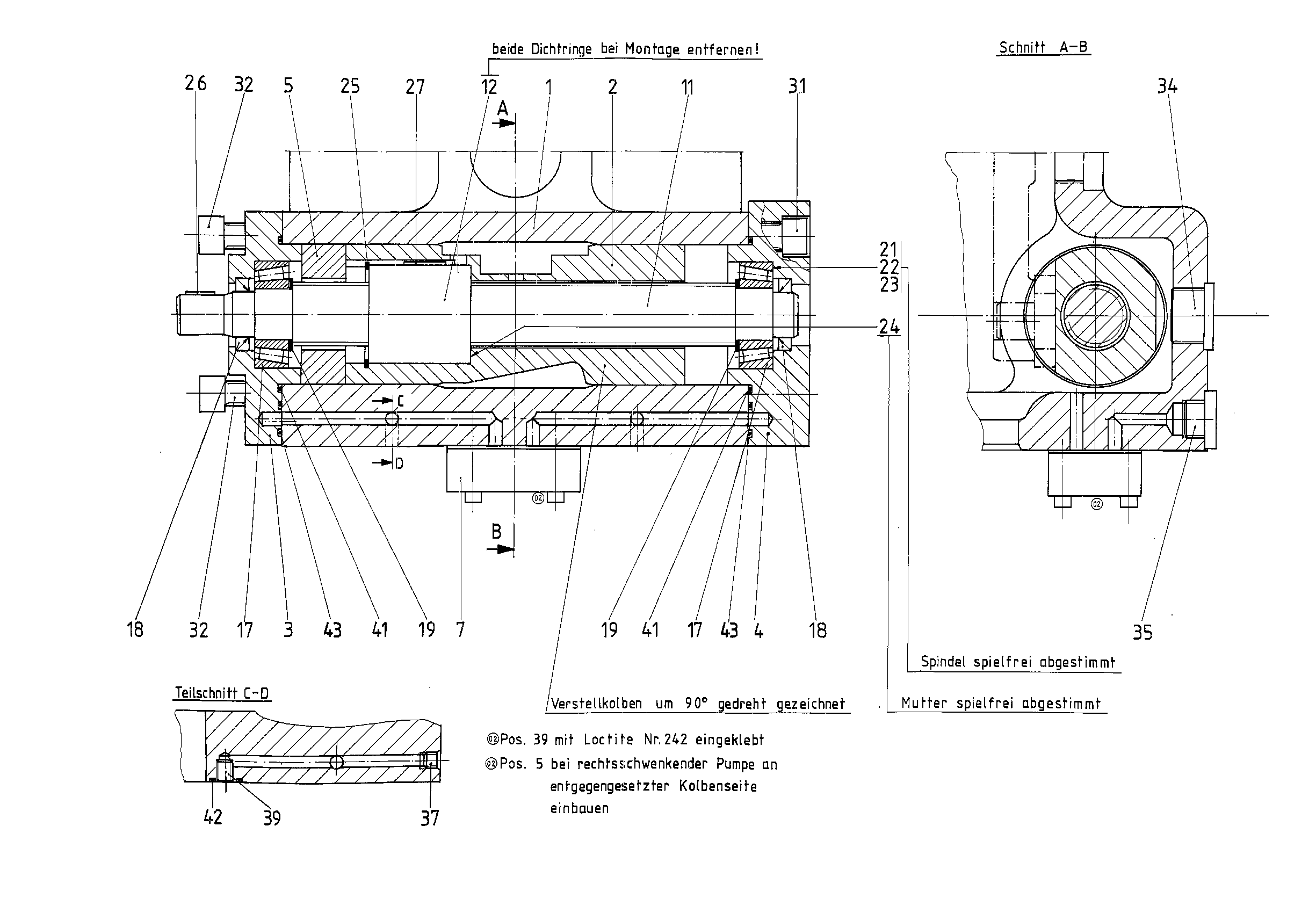

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910936171 | PUMP HOUSING | 1 | ||
| R902548733 | ADJUSTING PISTON | 1 | ||
| R910916487 | BEARING FLANGE | 1 | ||
| R910916492 | BEARING FLANGE | 1 | ||
| R910916493 | SIDE MARKER RING | 1 | ||
| 7 | R910914233 | COVER PLATE | 1 | |
| 11 | R910946386 | BALL SCREW ASSEMBLY | 1 | |
| 17 | R910101397 | TAPERED-ROLLER BEARING | 2 | |
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| 19 | R910105449 | SUPPORTING DISC | 2 | |
| R910585335 | SHIM RING | 1 | ||
| R910635022 | SHIM RING | 1 | ||
| R910635014 | SHIM RING | 1 | ||
| R910126276 | SHIM RING | 1 | ||
| R910150541 | RETAINING RING | 1 | ||
| R910315788 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109797 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 41 | R902650321 | R-RINGD | 2 | |
| R910942813 | R-RINGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Electric motor control 92072 | EM |
