Unit · AXIAL-PISTON MOTOR
AA6VM250FR/61L-VPB150B-SO60R910938277
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250FR/61L-VPB150B-SO60, material number R910938277. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite + at rear 15 (150). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 60.
- Number
- R910938277
- Type code
- AA6VM250FR/61L-VPB150B-SO60
- Group
- A6VM 250
- Edition
- 06/2020

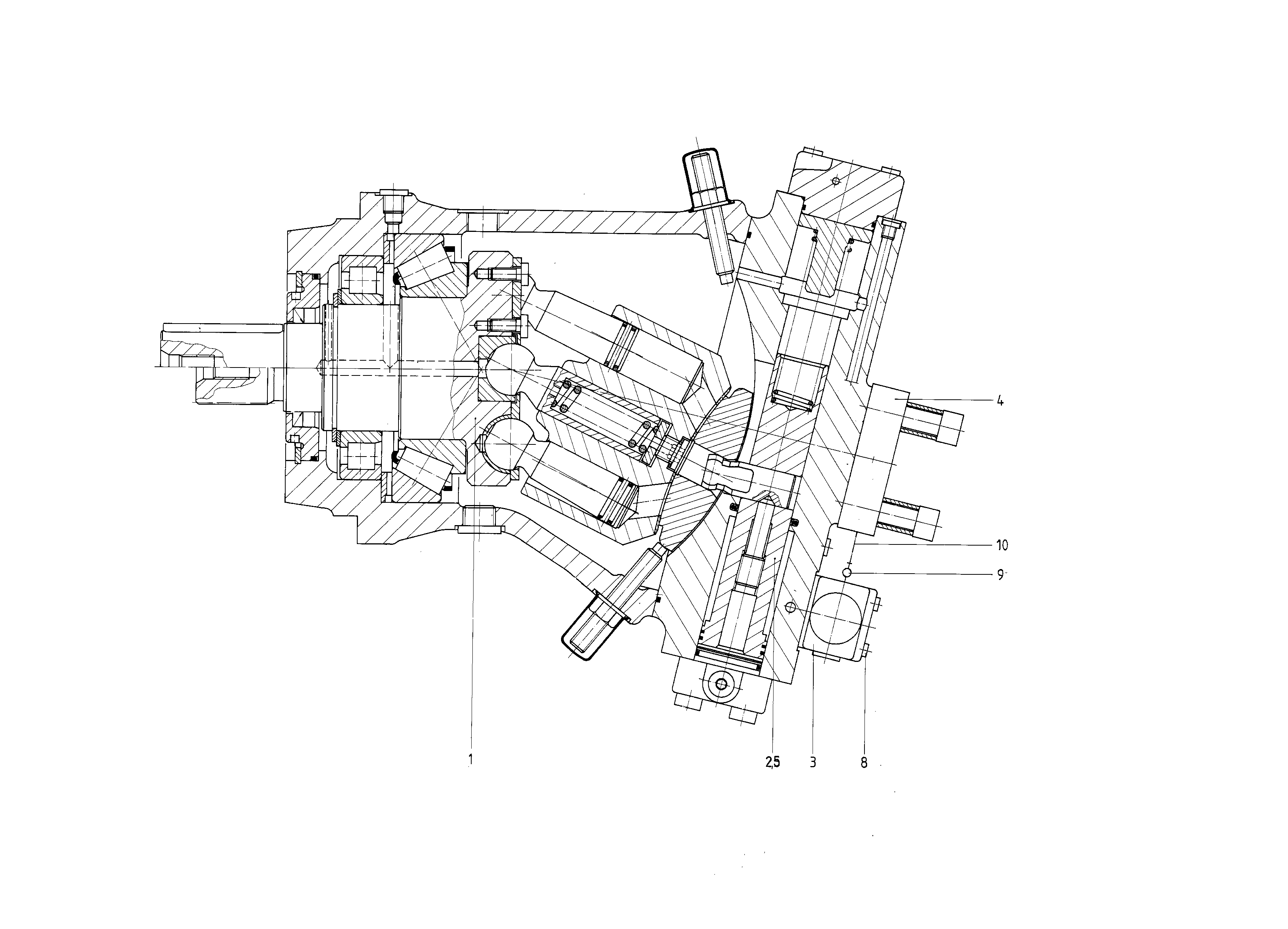

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910907706 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910907978 | CONTROL Assembly parts list →L | 1 | |
| R910931624 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 4 | R910934195 | ORIFICE FLANGE Assembly parts list →L | 1 | |
| 5 | R910907627 | BLANK FLANGE Assembly parts list →L | 2 | |
| 8 | R910785105 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R910778788 | THREADED FASTENER | 2 | |
| R910997196 | PIPEMYANMAR | 500 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite + at rear 15 | 150 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
