Unit · CONTROL
VA6VM250DA/63-P010R910939232
Control Bosch Rexroth series A6VM, type code VA6VM250DA/63-P010, material number R910939232. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010).
- Number
- R910939232
- Type code
- VA6VM250DA/63-P010
- Group
- A6VM 250
- Edition
- 06/2020

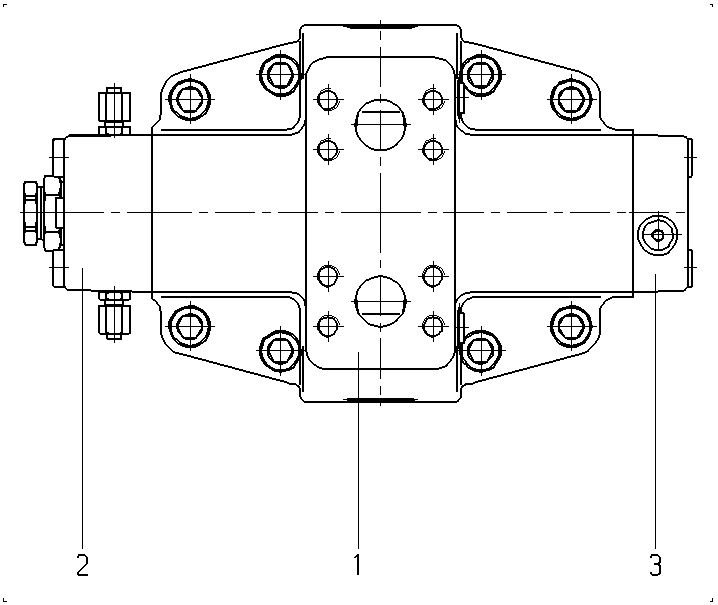

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910932513 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910931642 | CONTROL PART Assembly parts list →L | 1 | ||
| R910930942 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Series | Series 6, index 3 | 63 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
