Unit · AXIAL-PISTON MOTOR
AA6VLM355HA1T/61W-PPH020AR910939458
Axial piston motor Bosch Rexroth series A6VM, type code AA6VLM355HA1T/61W-PPH020A, material number R910939458. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910939458
- Type code
- AA6VLM355HA1T/61W-PPH020A
- Group
- A6VLM 355
- Edition
- 06/2020

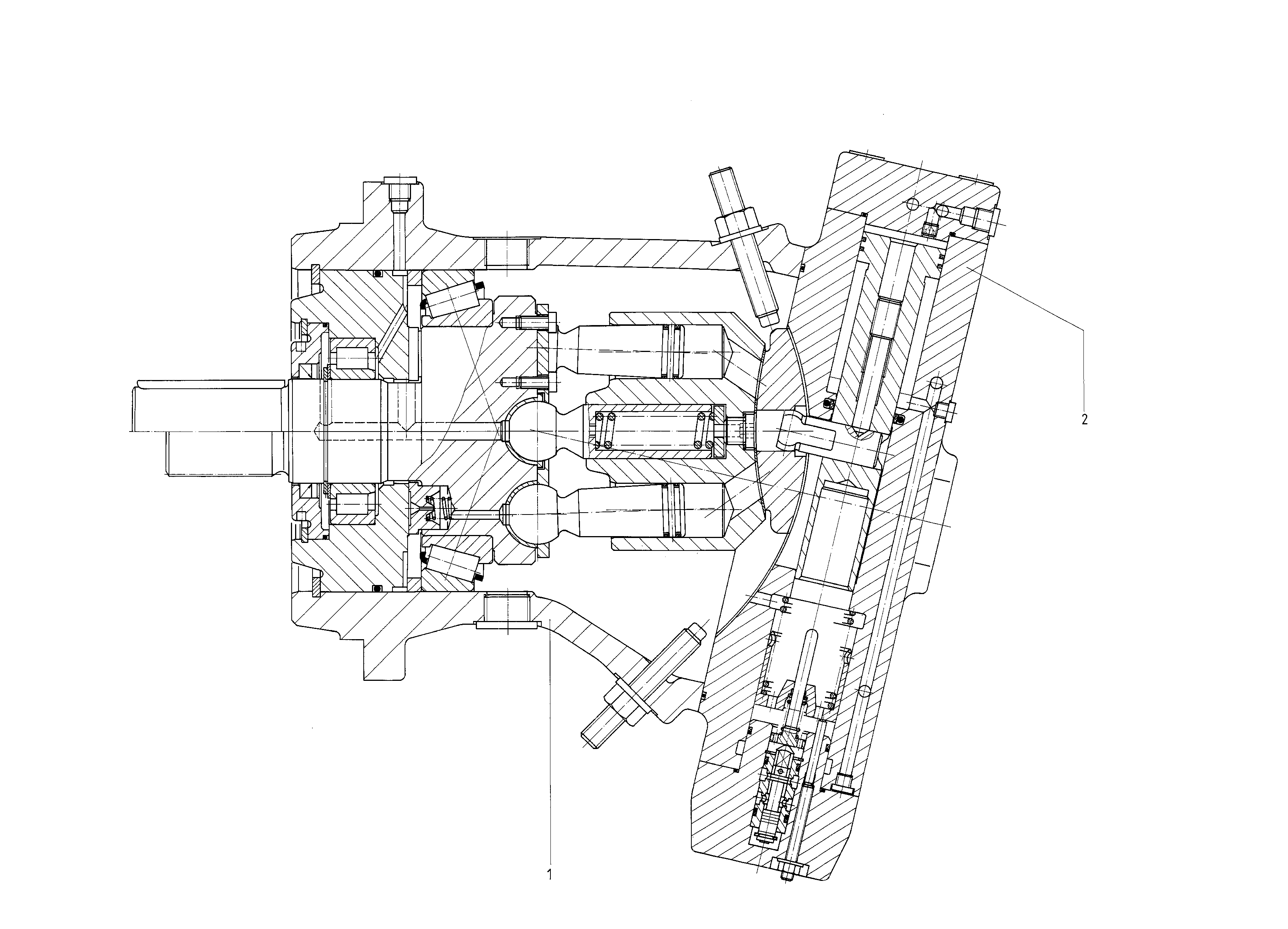

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910914854 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R910913747 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
