Unit · AXIAL-PISTON PUMP
A A7V O 250 LRDN1/63R-PPB02VR910940078
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO250LRDN1/63R-PPB02V, material number R910940078. Nominal size: NG 250.
- Number
- R910940078
- Type code
- A A7V O 250 LRDN1/63R-PPB02V
- Group
- A7VO 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

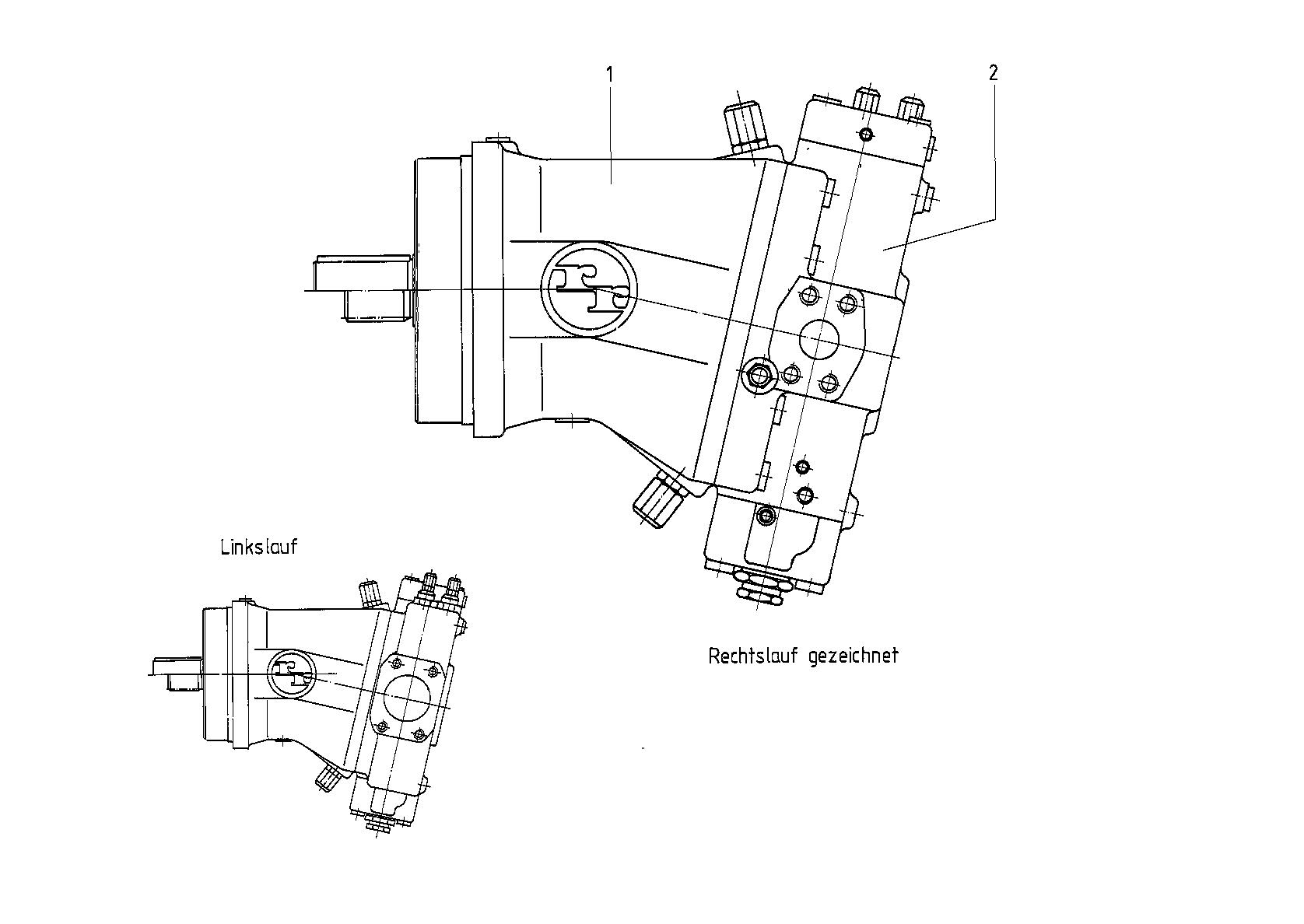

| R910938493 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910940079 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| with hydraulic stroke limiter Δp = 10 bar initial position Vg min | LRDN1 | |
| Series 6, Index 3 | 63 | |
| Keyed parallel shaft to DIN 6885 | P | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With optical swivel angle indicator | V |
