Unit · AXIAL-PISTON PUMP
PA4VSG500HD1/11X-VZH10K359N-SO571R910940699
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500HD1/11X-VZH10K359N-SO571, material number R910940699. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 224, 4-hole 60x2x28x9g (K35). Valves: SDVB valve block mounted (9). Filtration: without filter (N). Special version no. 571.
- Number
- R910940699
- Type code
- PA4VSG500HD1/11X-VZH10K359N-SO571
- Group
- A4VSG 500
- Edition
- 06/2020

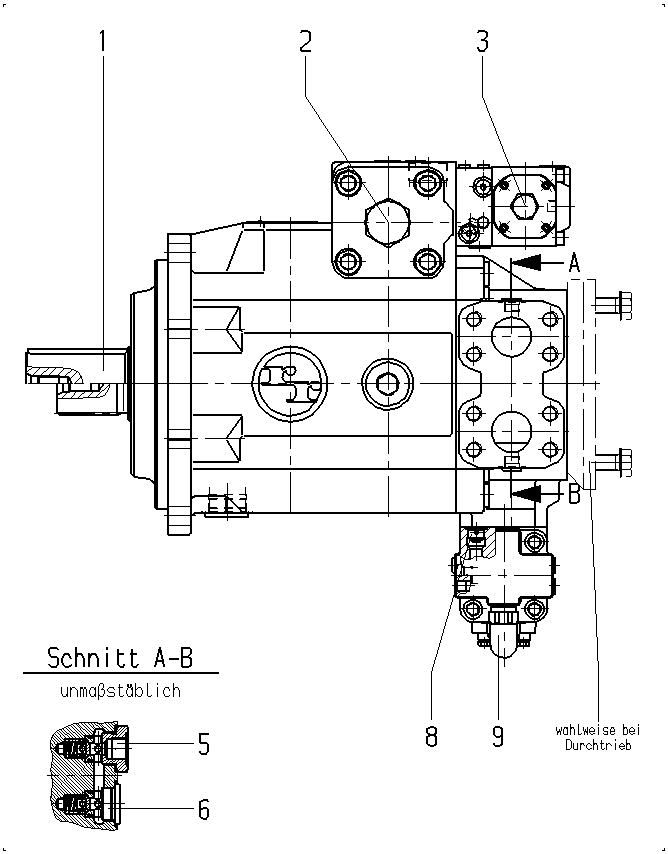

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940668 | BASE UNIT Assembly parts list →L | 1 | ||
| R910933828 | CONTROL Assembly parts list →L | 1 | ||
| R910924418 | SPRING PACK Assembly parts list →L | 1 | ||
| R910948831 | VALVE MOUNTING KIT | 1 | ||
| R910907074 | VALVE MOUNTING KIT | 1 | ||
| R910921901 | PRECHARGE VALVE | 1 | ||
| R910961102 | VALVE BLOCK Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 224, 4-hole 60x2x28x9g | K35 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
