Unit · AXIAL-PISTON PUMP

AA10VSO71DFR1/30R-PPA12H00R910940923

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFR1/30R-PPA12H00, material number R910940923. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H).

Number
R910940923
Type code
AA10VSO71DFR1/30R-PPA12H00
Group
A10VSO 71
Edition
06/2020

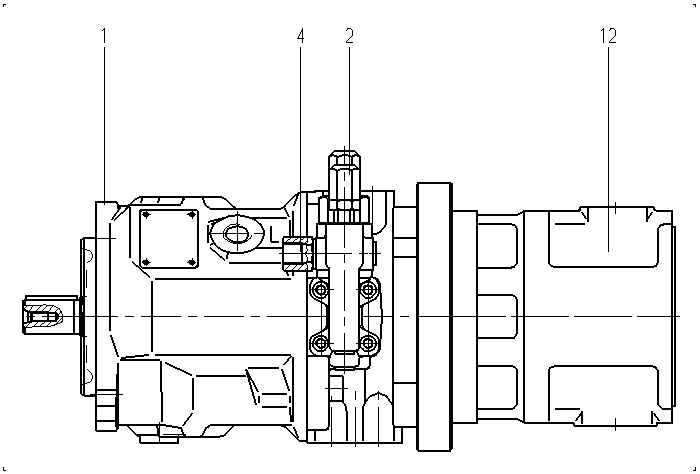

AA10VSO71DFR1/30R-PPA12H00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910919735BASE UNIT1
R902493019CONTROL VALVE Assembly parts list →L1
R910921653ADAPTER Assembly parts list →L1
R910921917GEAR PUMP1
61R910104914HEXAGON SCREW4

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)7171
Control devicewith flow controller X-T plugged, with flushing functionDFR1
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Connector for solenoidsHIRSCHMANN connector – without suppressor diodeH
