Unit · BASE UNIT
G AA10V M 45 OV /50W2-PSC68B015R910941736
Base unit Bosch Rexroth series A10VM, type code GAA10VM45OV/50W2-PSC68B015, material number R910941736. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (2). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Valves: without valve (0).
- Number
- R910941736
- Type code
- G AA10V M 45 OV /50W2-PSC68B015
- Group
- A10VM 45
- Edition
- 06/2020

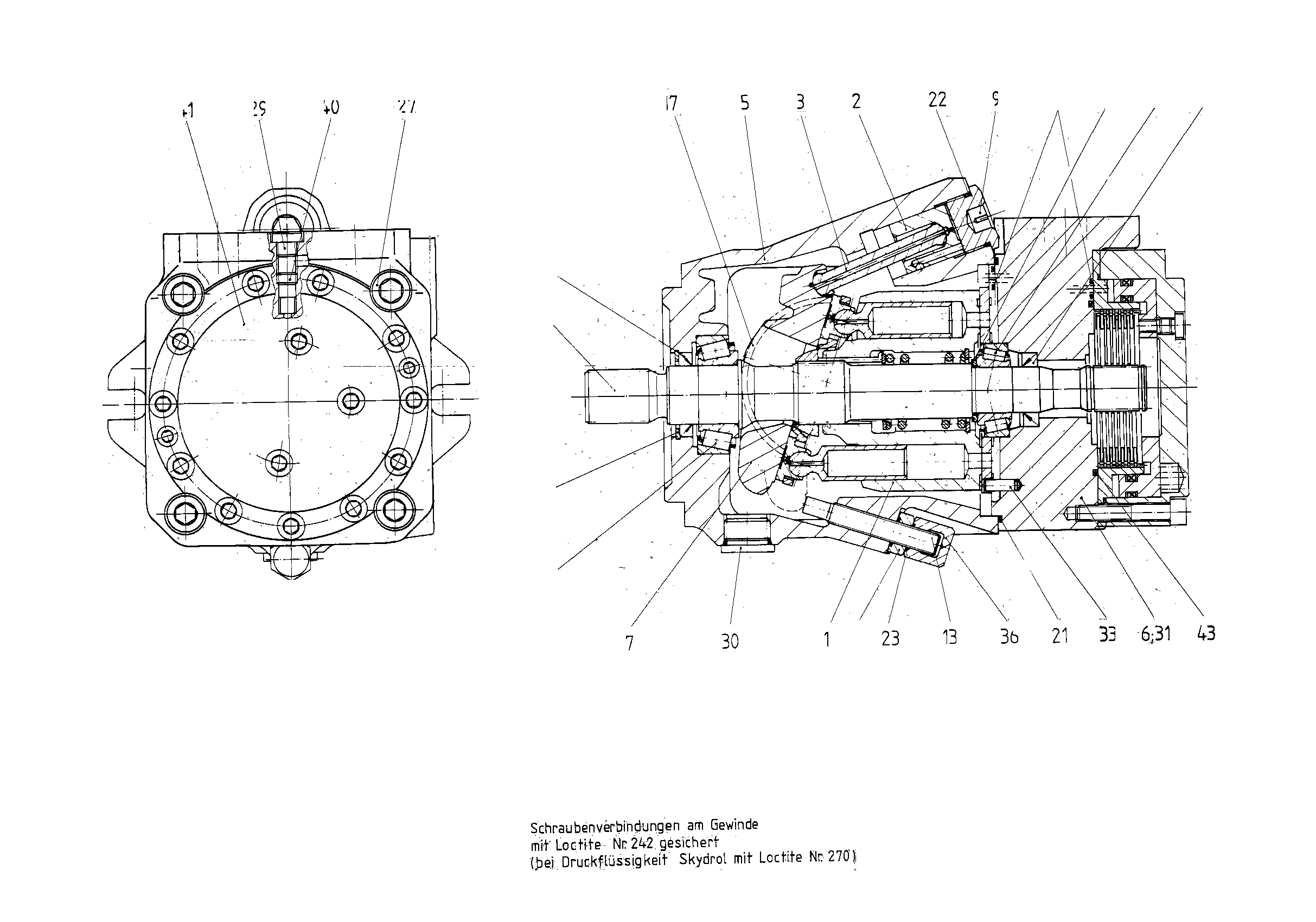

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910933802 | MOTOR HOUSING | 1 | ||
| R910938881 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| 8 | R902417396 | DRIVE SHAFT | 1 | |
| R902447686 | SCREW PLUG Assembly parts list →L | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| R910943993 | STOP SCREW | 1 | ||
| 15 | R910704946 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| R910933793 | BEARING SHELL | 2 | ||
| 19 | R910900853 | SHAFT SEALING RING | 1 | |
| 20 | R910985471 | SHAFT SEALING RINGD | 1 | |
| R913052051 | O-RINGD | 1 | ||
| R910514691 | O-RINGD | 2 | ||
| 24 | R910942134 | R-RINGD | 2 | |
| 25 | R902403814 | RETAINING RING | 1 | |
| R910126497 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011600 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| R910943994 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| R910941701 | BRAKE | 1 | ||
| R910977041 | O-RING | 1 | ||
| 46 | R910193216 | SOCKET HEAD CAP SCREW | 11 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 2 |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Valves | Without valve | 0 |
