Unit · AXIAL-PISTON PUMP

A A10V O 28 DFLR/31R-PSC62N00 -SO137R910942182

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFLR/31R-PSC62N00-SO137, material number R910942182. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 137.

Number: R910942182
Type code: A A10V O 28 DFLR/31R-PSC62N00 -SO137
Group: A10VO 28
Edition: 06/2020

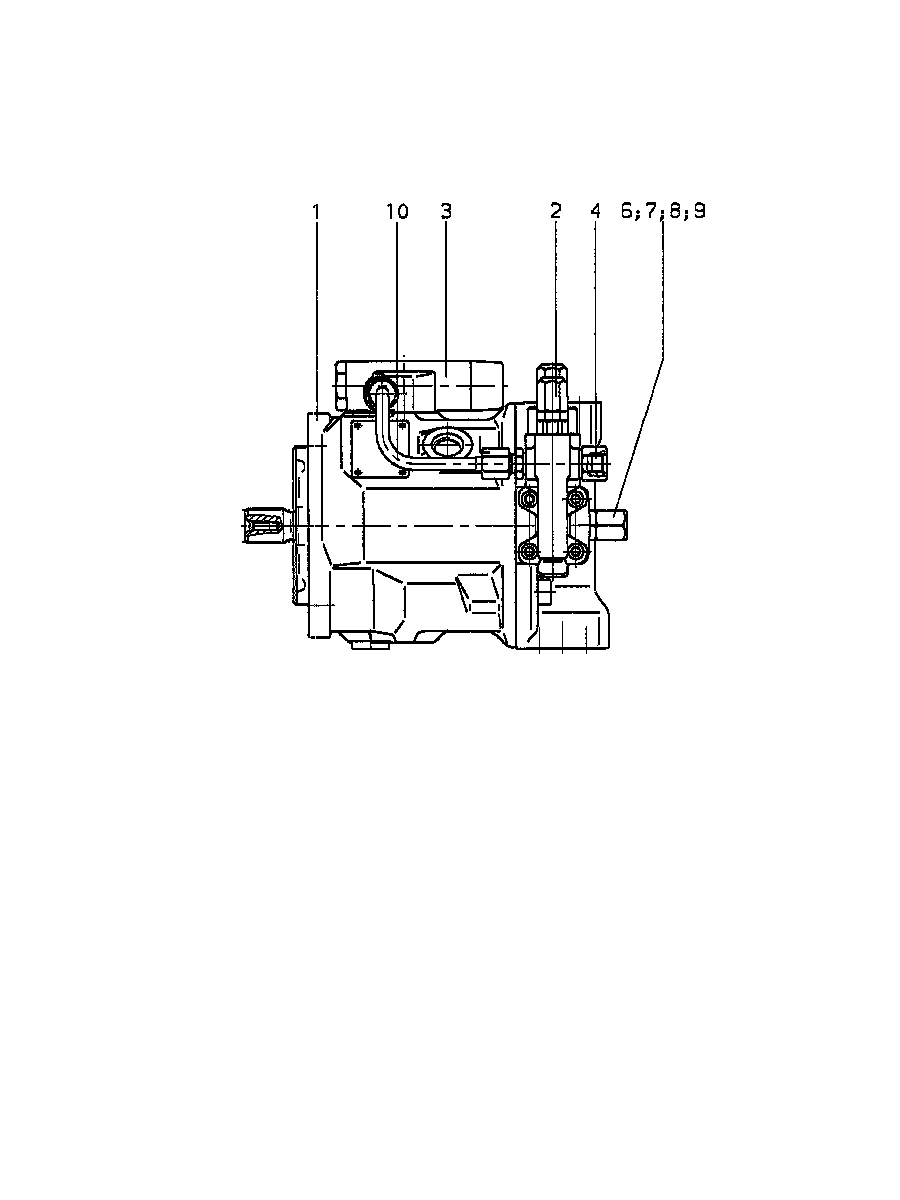

A A10V O 28 DFLR/31R-PSC62N00 -SO137 — Drawing

Pos.	Number	Name	Qty
1	R910913728	BASE UNIT Assembly parts list →L	1
2	R902459025	CONTROL VALVE Assembly parts list →L	1
3	R902533217	CONTROL VALVE Assembly parts list →L	1
4	R910932940	ADAPTER Assembly parts list →L	1
6	R910514691	O-RINGD	2
7	R910917778	SETSCREW	1
8	R910998240	NUT	1
9	R910904041	CAP NUT	1
10	R910948341	PIPING Assembly parts list →L	1
11	R910915382	POWER DIAGRAM	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code
