Unit · BASE UNIT
GE A10VSO 18 OV /31R-VUC62N00R910942407
Base unit Bosch Rexroth series A10VSO, type code GEA10VSO18OV/31R-VUC62N00, material number R910942407. Nominal size: NG 18. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 reduced diameter, not for through drive (U). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R910942407
- Type code
- GE A10VSO 18 OV /31R-VUC62N00
- Group
- A10VSO 18
- Edition
- 06/2020

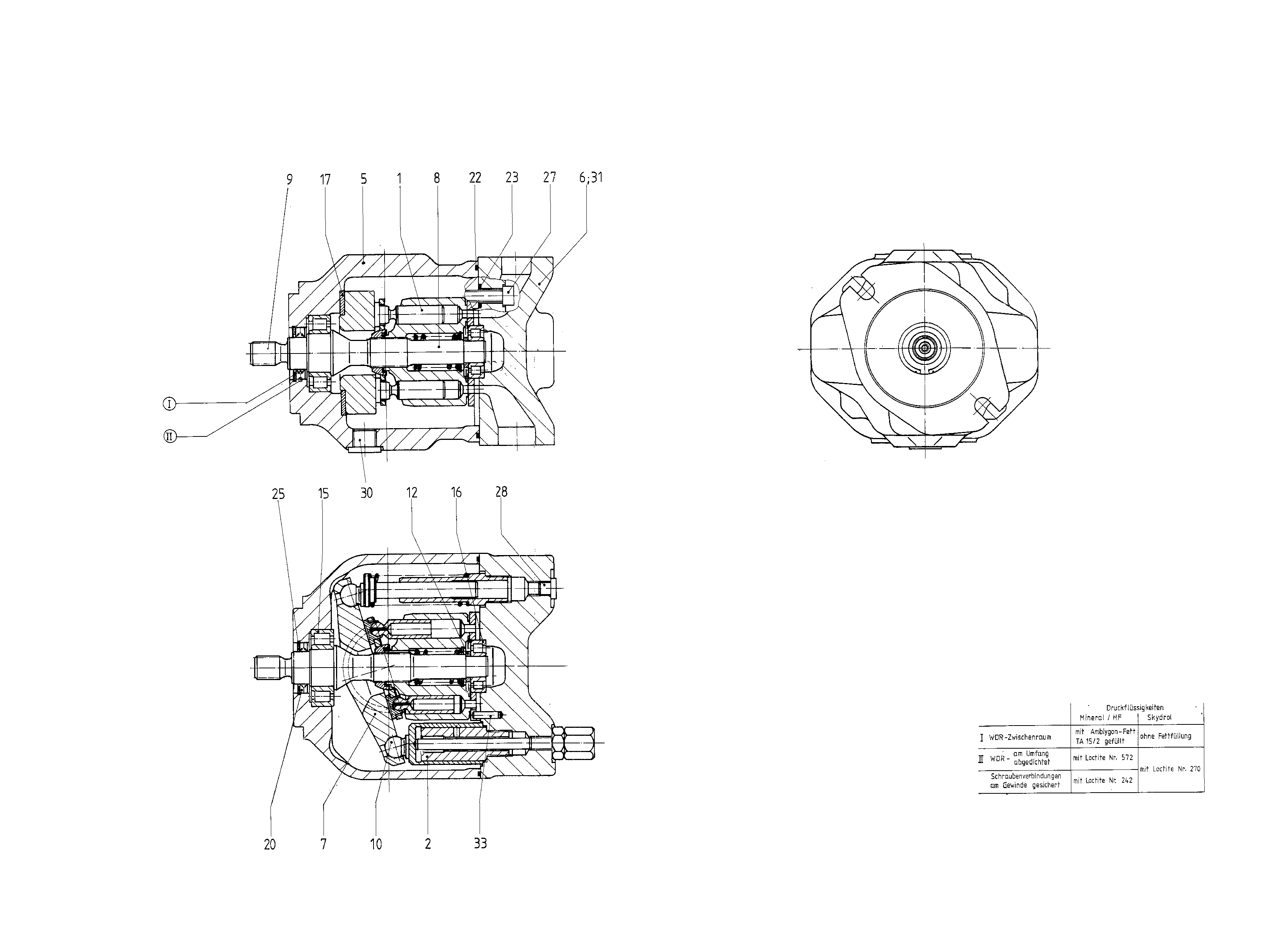

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940435 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538170 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910935644 | PUMP HOUSING | 1 | ||
| R910940752 | CONNECTION PLATE | 1 | ||
| R910960809 | SWASH PLATE | 1 | ||
| R902413739 | DRIVE SHAFT | 1 | ||
| 9 | R910930528 | PARALLEL KEY | 1 | |
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| 15 | R910934965 | CYL. ROLLER BEARING | 1 | |
| R910931556 | CYL. ROLLER BEARING | 1 | ||
| R910925266 | BEARING SHELL | 2 | ||
| R910931541 | SHAFT SEALING RINGD | 1 | ||
| R910928325 | O-RINGD | 1 | ||
| R913052100 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910277193 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 reduced diameter, not for through drive | U |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
