Unit · AXIAL-PISTON PUMP

AA10VO71DFR1/31R-PSC12N00-SO324R910942446

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31R-PSC12N00-SO324, material number R910942446. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 324.

Number: R910942446
Type code: AA10VO71DFR1/31R-PSC12N00-SO324
Group: A10VO 71
Edition: 06/2020

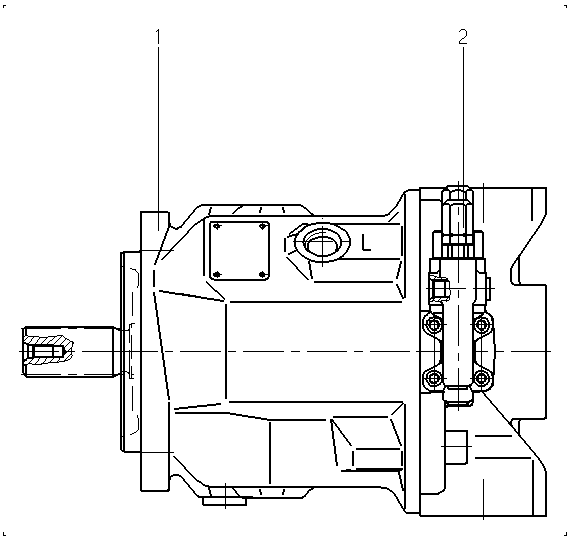

AA10VO71DFR1/31R-PSC12N00-SO324 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R910942322	BASE UNIT Assembly parts list →L	1
	R902450439	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive	12
Through drive	Without through drive	N00

Parameters from the type code
