Unit · AXIAL-PISTON MOTOR
AA4FM112/10L-VPB01-SO266R910943095
Axial piston motor Bosch Rexroth series A4FM, type code AA4FM112/10L-VPB01-SO266, material number R910943095. Nominal size: NG 112. Axial piston unit: swashplate design, fixed (A4F). Operating mode: motor, open and closed circuit (M). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2; 4-hole (B). Working port: SAE working port A and B at rear, metric fastening threads according to DIN 13 (01). Special version no. 266.
- Number
- R910943095
- Type code
- AA4FM112/10L-VPB01-SO266
- Group
- A4FM 112
- Edition
- 06/2020

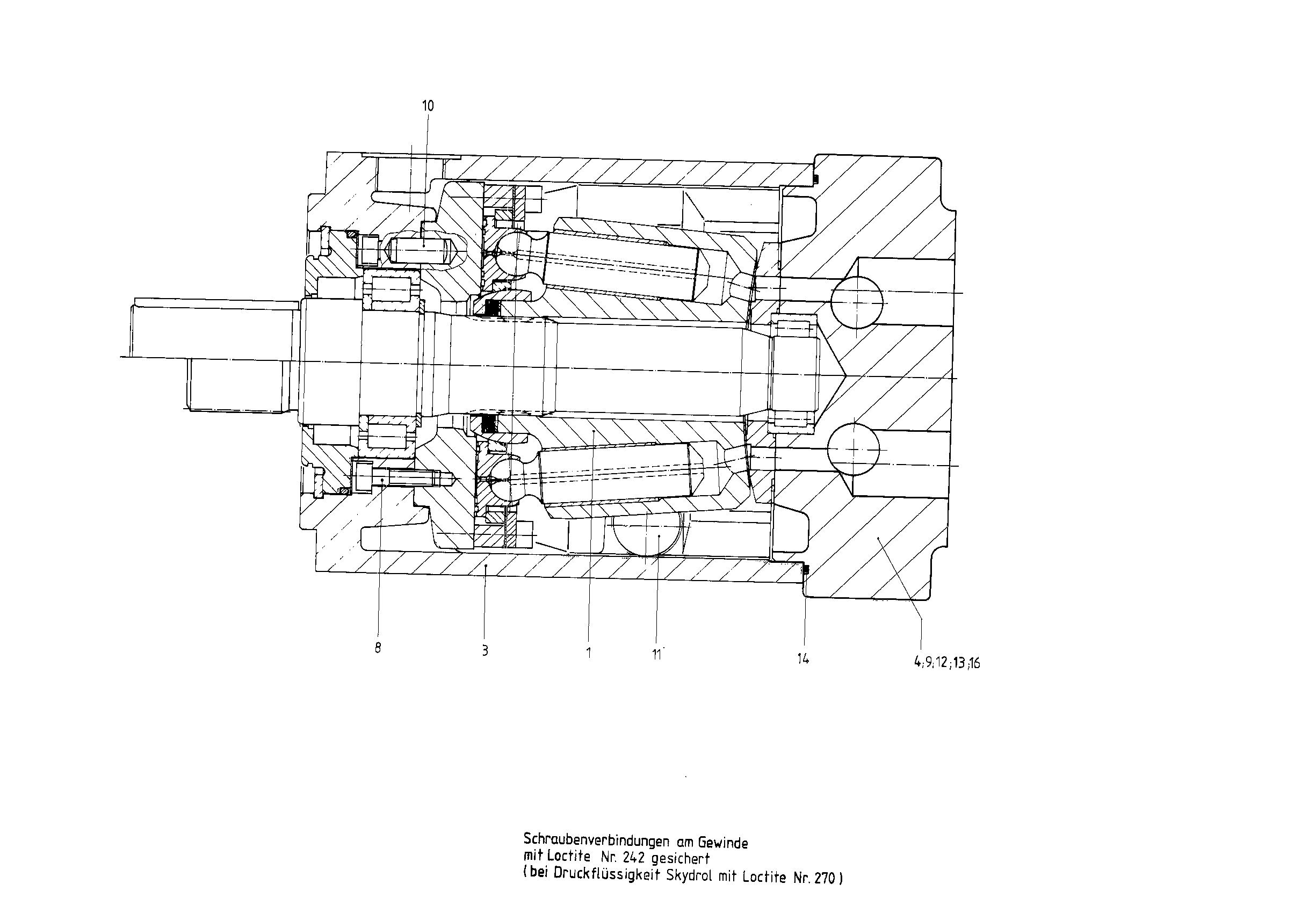

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910943097 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910916899 | PUMP HOUSING | 1 | ||
| R910917018 | CONNECTION PLATE | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 5 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R909156652 | SCREW PLUGD | 1 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156984 | SCREW PLUGD | 2 | ||
| R910764728 | O-RINGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed | A4F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 112 | 112 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Working port | SAE working port A and B at rear, metric fastening threads according to DIN 13 | 01 |
