Unit · ROTARY GROUP
TWA4FM112M/10L-VPBN00-SO266R910943097
Rotary group Bosch Rexroth series A4FM, type code TWA4FM112M/10L-VPBN00-SO266, material number R910943097. Axial piston unit: swashplate design, fixed (A4F). Operating mode: motor, open and closed circuit (M). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2; 4-hole (B). Special version no. 266.
- Number
- R910943097
- Type code
- TWA4FM112M/10L-VPBN00-SO266
- Group
- A4FM 112
- Edition
- 06/2020

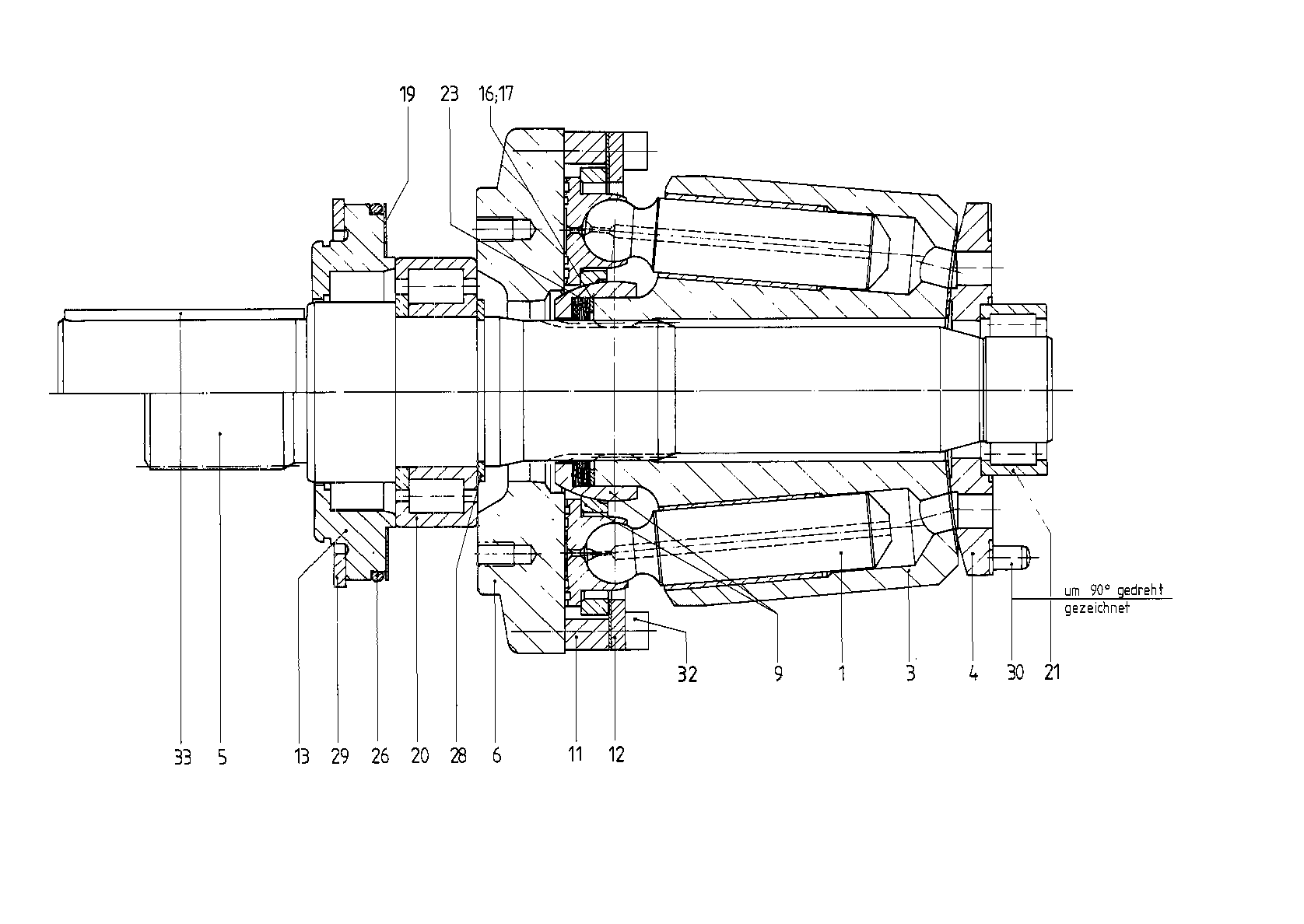

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902400860 | PISTON PAD | 9 | |
| R902463686 | CYLINDER | 1 | ||
| R910936317 | DISTRIBUTOR PLATE | 1 | ||
| R902409284 | DRIVE SHAFT | 1 | ||
| 6 | R910941702 | CAM PLATE | 1 | |
| R902534515 | RETAINING PLATE | 1 | ||
| 10 | R910803064 | RETAINING BALL | 1 | |
| 11 | R910960661 | SPACER SEGMENT | 2 | |
| R902570183 | SEGMENT | 2 | ||
| 13 | R910991563 | SEALING FLANGE | 1 | |
| 16 | R910846473 | SHIM RING | 1 | |
| 17 | R910846465 | SHIM RING | 1 | |
| 18 | R909078321 | SHIM RING | 1 | |
| 20 | R910960737 | CYL. ROLLER BEARING | 1 | |
| 21 | R910840904 | CYL. ROLLER BEARING | 1 | |
| 23 | R909074128 | CUP-SPRING STACK | 1 | |
| 26 | R910908213 | O-RINGD | 1 | |
| 27 | R902400755 | BACKUP RING | 1 | |
| 28 | R910991664 | RETAINING RING | 1 | |
| 30 | R913000822 | STRAIGHT PIN | 1 | |
| R902650864 | SOCKET HEAD CAP SCREW | 4 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| 34 | R910991663 | RETAINING RING | 1 | |
| 35 | R910991662 | RETAINING RING | 1 | |
| 38 | R910991665 | RETAINING RING | 1 | |
| 39 | R910991666 | RETAINING RING | 1 | |
| 40 | R910991667 | RETAINING RING | 1 | |
| 41 | R910991668 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed | A4F |
| Operating mode | Motor, open and closed circuit | M |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
