Unit · BASE UNIT
G A10V O140 OV /31L-PSD62N00 LR -SO 97R910943217
Base unit Bosch Rexroth series A10VO, type code GA10VO140OV/31L-PSD62N00LR-SO97, material number R910943217. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00).
- Number
- R910943217
- Type code
- G A10V O140 OV /31L-PSD62N00 LR -SO 97
- Group
- A10VO 140
- Edition
- 06/2020

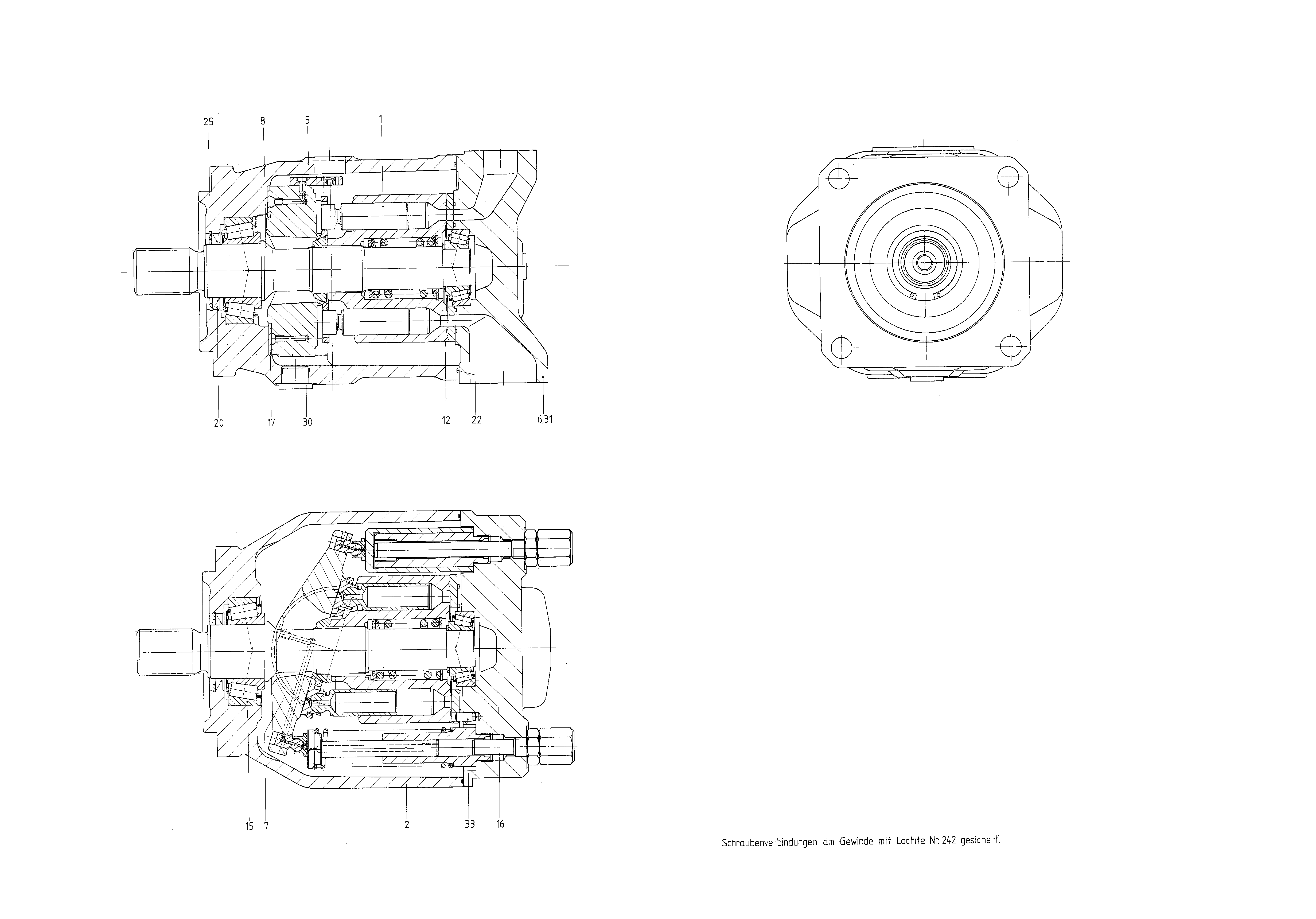

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910918188 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538158 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910918323 | PUMP HOUSING | 1 | ||
| R902534414 | CONNECTION PLATE | 1 | ||
| R910961085 | SWASH PLATE | 1 | ||
| R910987711 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| R910930460 | O-RINGD | 1 | ||
| 23 | R913053033 | R-RINGD | 4 | |
| R910941920 | RETAINING RING | 1 | ||
| 27 | R910659169 | SOCKET HEAD CAP SCREW | 4 | |
| R909154480 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
