Unit · BASE UNIT
G AA10V E 45 OV /50W1-VSF60N000 -SO687R910944606
Base unit Bosch Rexroth series A10VM, type code GAA10VE45OV/50W1-VSF60N000-SO687, material number R910944606. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: special flange; 2 hole (F). Working port: flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side (60N00). Valves: without valve (0). Special version no. 687.
- Number
- R910944606
- Type code
- G AA10V E 45 OV /50W1-VSF60N000 -SO687
- Group
- A10VE 45
- Edition
- 06/2020

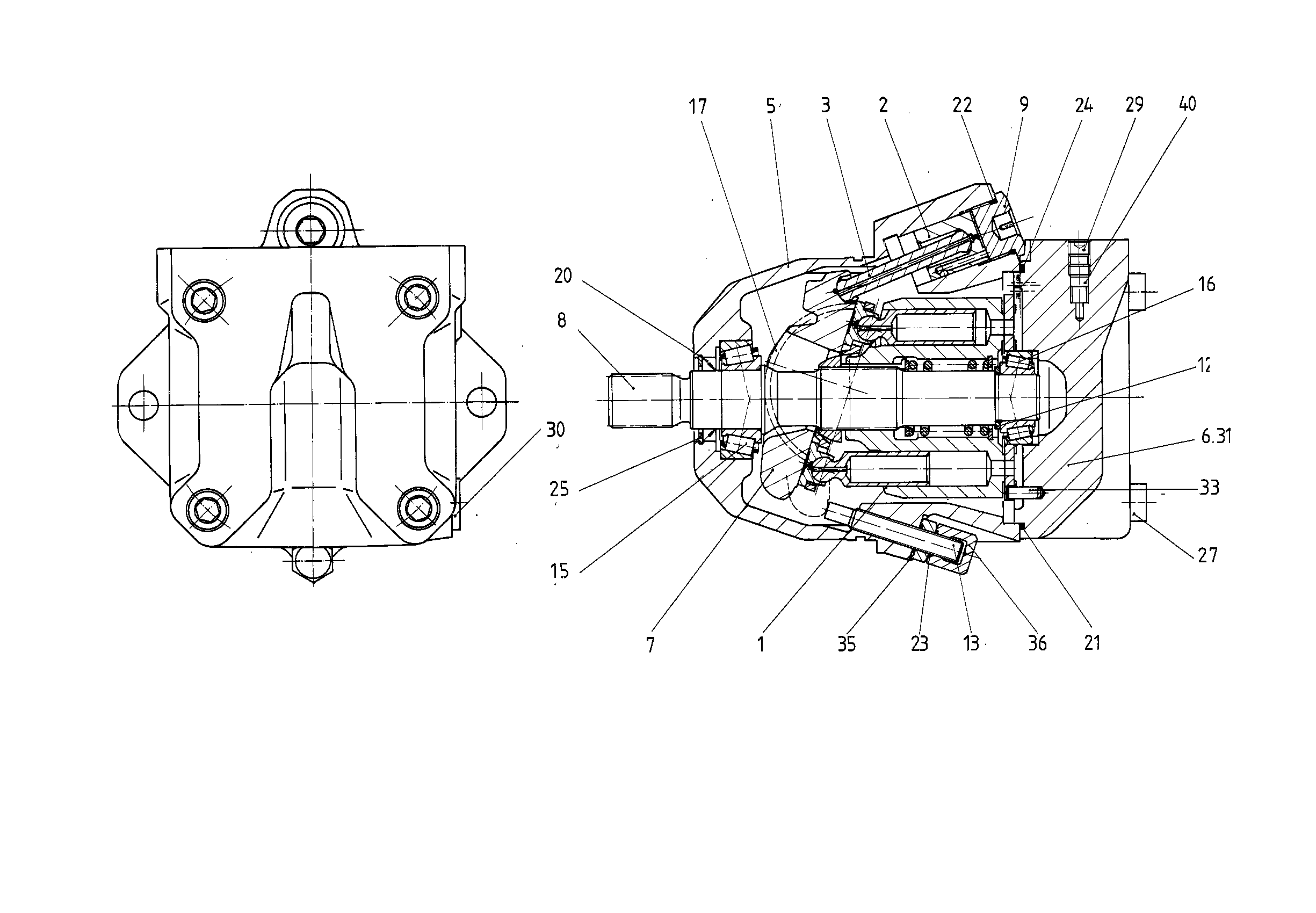

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910993694 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902410510 | MOTOR HOUSING | 1 | ||
| 6 | R910993067 | CONNECTION PLATE | 1 | |
| R902443505 | SWASH PLATE | 1 | ||
| 8 | R910992268 | DRIVE SHAFT | 1 | |
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| R910933408 | STOP SCREW | 1 | ||
| 14 | R910987963 | STOP RING | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011608 | SCREW PLUG | 1 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side | 60N00 |
| Valves | Without valve | 0 |
