Unit · AXIAL-PISTON MOTOR
A A6V M 355 FR1 /63L1-VPH010 B-SO 77R910944651
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM355FR1/63L1-VPH010B-SO77, material number R910944651. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 77.
- Number
- R910944651
- Type code
- A A6V M 355 FR1 /63L1-VPH010 B-SO 77
- Group
- A6VM 355
- Edition
- 06/2020

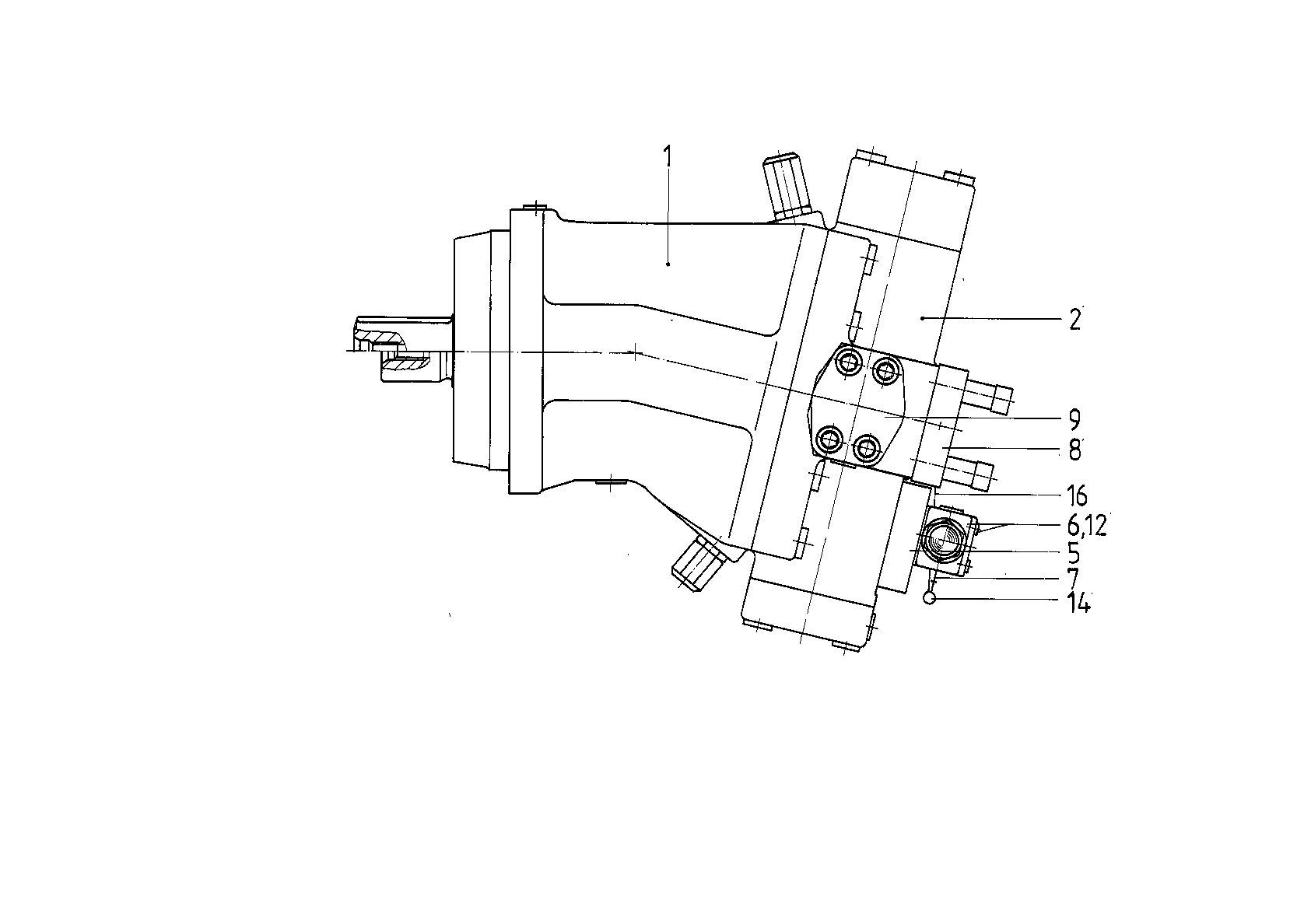

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910941048 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| 2 | R910942001 | CONTROL Assembly parts list →L | 1 | |
| 5 | R910936720 | INTERMEDIATE PLATE Assembly parts list →L | 1 | |
| 6 | R910924990 | CONTROL VALVE Assembly parts list →L | 1 | |
| R910934464 | THREADED FASTENER Assembly parts list →L | 1 | ||
| 8 | R910944654 | ORIFICE FLANGE Assembly parts list →L | 1 | |
| 12 | R910785105 | SOCKET HEAD CAP SCREW | 4 | |
| R910778788 | THREADED FASTENER | 2 | ||
| 16 | R910997196 | PIPEMYANMAR | 500 | |
| 20 | R909153930 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Series | Series 6, index 3 | 63 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
