Unit · BASE UNIT
G A10VSO100 OV /31R-PPA12K54 LR -SO228R910945720
Base unit Bosch Rexroth series A10VSO, type code GA10VSO100OV/31R-PPA12K54LR-SO228, material number R910945720. Nominal size: NG 100. Version: standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 limited suitability for through drive (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports, laterally opposite fastening thread, metric (12). Special version no. 228.
- Number
- R910945720
- Type code
- G A10VSO100 OV /31R-PPA12K54 LR -SO228
- Group
- A10VSO 100
- Edition
- 06/2020

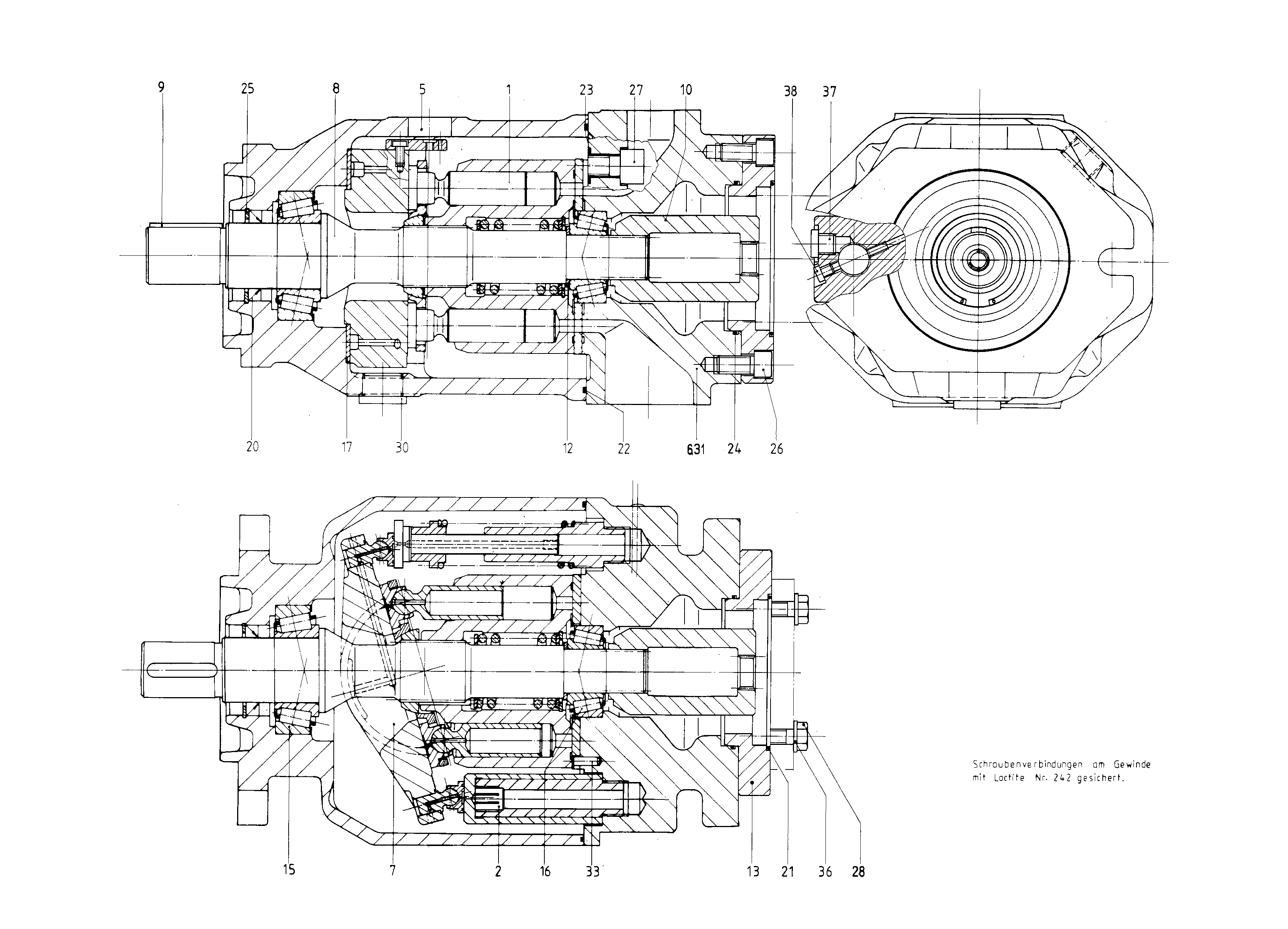

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910917225 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R910906815 | PUMP HOUSING | 1 | ||
| 6 | R910998488 | CONNECTION PLATE | 1 | |
| R910961044 | SWASH PLATE | 1 | ||
| 8 | R910987697 | DRIVE SHAFT | 1 | |
| 9 | R910923559 | PARALLEL KEY | 1 | |
| R910943748 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910918216 | INTERMEDIATE FLANGE | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910112127 | O-RINGD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| R910787655 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| 31 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011601 | SCREW PLUG | 1 | |
| R909151979 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | Standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 limited suitability for through drive | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports, laterally opposite fastening thread, metric | 12 |
