Unit · BASE UNIT
G AA10V O 45 OV /50L-PSC11N00 -SO407R910946404
Base unit Bosch Rexroth series A10VO, type code GAA10VO45OV/50L-PSC11N00-SO407, material number R910946404. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 407.
- Number
- R910946404
- Type code
- G AA10V O 45 OV /50L-PSC11N00 -SO407
- Group
- A10VO 45
- Edition
- 06/2020

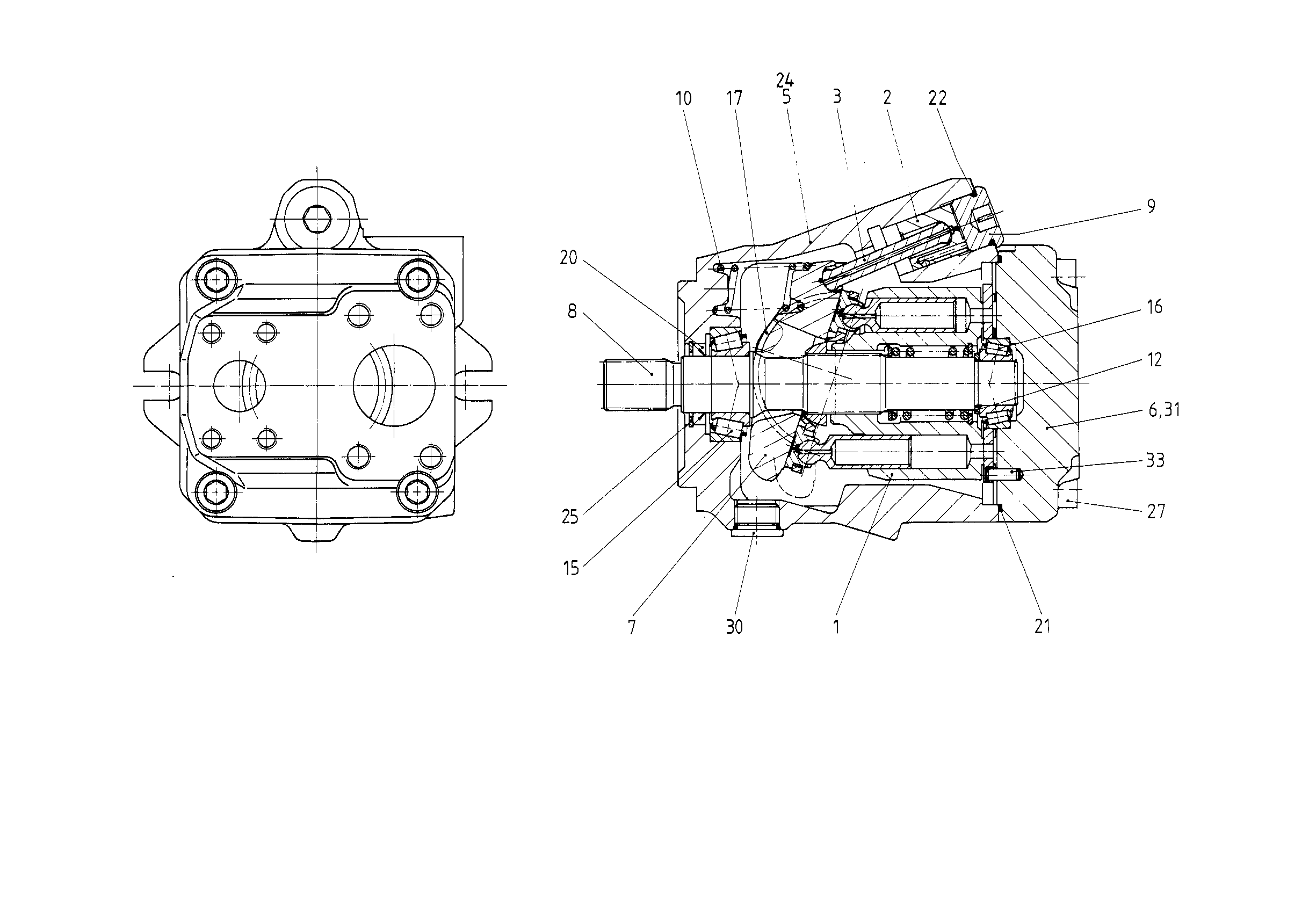

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435270 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| 3 | R902439068 | PISTON ROD | 1 | |
| 5 | R910933806 | PUMP HOUSING | 1 | |
| 6 | R910946378 | CONNECTION PLATE | 1 | |
| R902437705 | SWASH PLATE | 1 | ||
| 8 | R910992268 | DRIVE SHAFT | 1 | |
| 9 | R902447590 | SCREW PLUG | 1 | |
| R910928606 | COMPRESSION SPRING | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| 24 | R910942134 | R-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910110248 | SOCKET HEAD CAP SCREW | 4 | |
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
